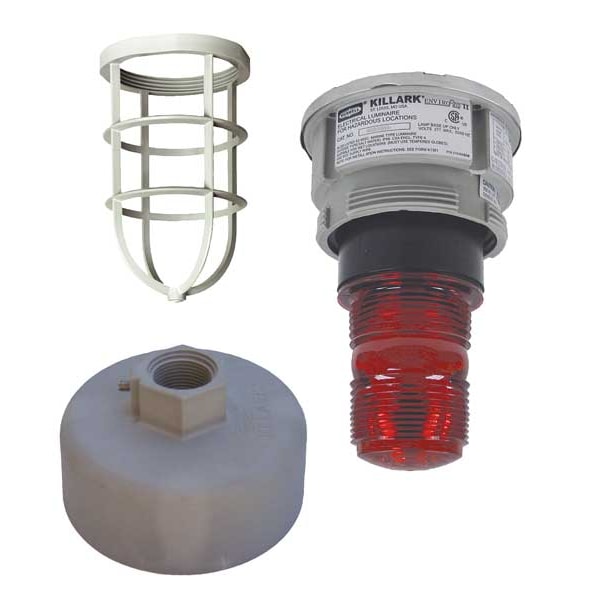

Killark Hazard Location Fixtures NVSZMFG01RAG - main

Hazard Location Fixtures

  • Mfr # NVSZMFG01RAG

  • Zoro # G3298881

product price: $413.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSZMFG01RAG
Zoro #
G3298881
UPC #
00783936070926
Country of Origin
Multiple

Dimensions

Length (In.)
4.22
Dia. (In.)
7.26
Width (In.)
4.22
Height (In.)
11.55
Nominal Height
11 35/64 in
Nominal Width
4 3/8 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
4 3/8 in
Overall Height
11 1/2 in
Overall Depth
11 9/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Marine Rated (US Only), NEMA 4X
Flashes per Minute
60-80
Max. Fixture Wattage
2.7 W
Lamp Type
LED
Color
Red
Lamp Type - Fixtures
Flashing Strobe
Fixture Voltage
120V AC
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Housing Finish
Gray
Series
NVS
Linkable Up To
Unlinkable
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Watts - Fixtures
2.7
Dimmable
No
Fixture Wattage
2.7
Lamp Life (Hours)
10K
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Ambient Temp. Range (F)
-40 to 104
Lamp Quantity
1
Voltage
120 V AC
Lamp Included
Yes
Emergency Battery Backup
No
Type
Flashing
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Lamp Watts
2.7 W
Number of Bulbs
1
Mounting Location
Pendant
For Number of Bulbs
1
CA Title 24 Compliant
No
For Max. Bulb Wattage
2.7 W
UL/CSA/ETL Listed
CSA Certified, UL Listed
For Bulb Type
Xenon
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Zone 2, Groups IIC, IIB, IIA
Min. Ambient Temp.
-40 Degrees F
Ingress Protection Rating
66
Flasher Strobe Color
Red
Temperature Code
T2C
Max. Ambient Temp.
104 Degrees F
Mounting Style
Pendant
Number of Lamps
1
Operating Temperature - Maximum
40 Degrees C
Light Source
Xenon
Wattage
2.7 W
Operating Temperature - Minimum
-40 Degrees C
NEMA Rating
NEMA 4X
Lens Color
Red
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Operating Voltage
120 V AC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 60-80, Housing Material Fiberglass Reinforced, Polyester, Mounting Pendant, Voltage 120V AC
