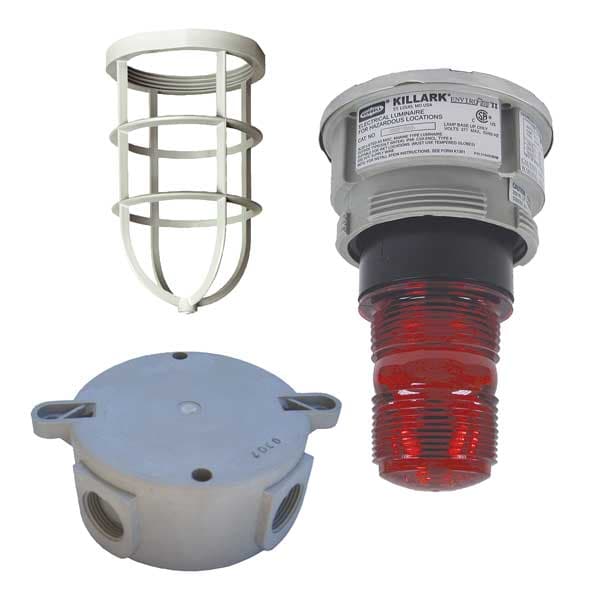

Killark Hazard Location Fixtures NVSZMFG01RXG - main

Hazard Location Fixtures

  • Mfr # NVSZMFG01RXG

  • Zoro # G2000153

product price: $416.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NVSZMFG01RXG
Zoro #
G2000153
UPC #
00783936071077
Country of Origin
Multiple

Dimensions

Dia. (In.)
7.26
Width (In.)
4.22
Nominal Height
11 3/16 in
Nominal Width
4 35/64 in
Height (In.)
11.19
Length (In.)
4.22
Overall Height
11 1/4 in
Overall Width
4 9/16 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Depth
11 3/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Ceiling
Standards
Marine Rated (US Only), NEMA 4X
Type
Flashing
Max. Fixture Wattage
2.7 W
Series
NVS
Voltage
120 V AC
Emergency Battery Backup
No
Lamp Watts - Fixtures
2.7
Lamp Type
LED
Lamp Type - Fixtures
Flashing Strobe
Fixture Voltage
120V AC
Linkable Up To
Unlinkable
Lamp Life (Hours)
10K
Ambient Temp. Range (F)
-40 to 104
Dimmable
No
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Lamp Included
Yes
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Lamp Quantity
1
Housing Finish
Gray
Color
Red
Fixture Wattage
2.7
Flashes per Minute
60-80
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Lamp Watts
2.7 W
Number of Bulbs
1
CA Title 24 Compliant
No
For Bulb Type
Xenon
Max. Ambient Temp.
104 Degrees F
For Number of Bulbs
1
Flasher Strobe Color
Red
Ingress Protection Rating
66
Mounting Location
Ceiling
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Zone 2, Groups IIC, IIB, IIA
For Max. Bulb Wattage
2.7 W
Min. Ambient Temp.
-40 Degrees F
Temperature Code
T2C
UL/CSA/ETL Listed
CSA Certified, UL Listed
Number of Lamps
1
NEMA Rating
NEMA 4X
Lens Color
Red
Operating Temperature - Maximum
40 Degrees C
Wattage
2.7 W
Operating Temperature - Minimum
-40 Degrees C
Light Source
Xenon
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Operating Voltage
120 V AC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 60-80, Housing Material Fiberglass Reinforced, Polyester, Mounting Ceiling, Voltage 120V AC
