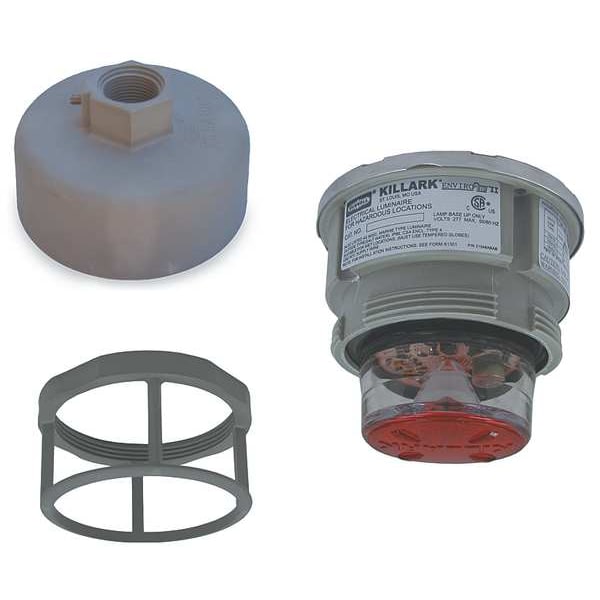

KILLARK LED Lamps, Hazardous Location Signal Light

  • Mfr # NVSLCFG25RAG
  • Zoro # G3442345
product price:
$
489.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
30% Glass Filled Thermoset Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NVSLCFG25RAG
Zoro #
G3442345
UPC #
783936070322
Country of Origin
Multiple

Dimensions

Nominal Width
4 17/32 in
Dia. (In.)
4.75
Width (In.)
4.22
Height (In.)
6.55
Length (In.)
4.22 in
Nominal Height
6 35/64 in
Overall Length
5 1/2 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
17 1/2 in
Overall Height
5 1/2 in
Overall Depth
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
LED
Housing Material
30% Glass Filled Thermoset Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Marine Rated (US only), NEMA 4X, Type 4X
Type
Flashing
Lamp Quantity
1
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Ambient Temp. Range (F)
-40 Degrees to 40 Degrees C
Max. Fixture Wattage
1 W
Linkable Up To
Unlinkable
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Type
LED
Color
Red
Dimmable
No
Emergency Battery Backup
No
Voltage
120V AC to 240V AC
Lamp Life (Hours)
50K
Lamp Watts - Fixtures
1.0
Lamp Included
No
Series
NVSL
Housing Finish
Powder Epoxy Paint
Flashes per Minute
420 Microflashes
Fixture Wattage
1
Fixture Voltage
120V AC to 240V AC
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Lamp Type - Fixtures
Flashing Strobe
Min. Ambient Temp.
-40 Degrees F
Fixture Rated Life
50,000 hr
Mounting Location
Pendant
Ingress Protection Rating
66
UL/CSA/ETL Listed
CSA, CSA US Certified
Flasher Strobe Color
Red
Max. Ambient Temp.
104 Degrees F
For Bulb Shape
Integrated LED
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Groups IIC, IIB, IIA, Zone 2
Number of Bulbs
1
Temperature Code
T6
For Bulb Type
LED
CA Title 24 Compliant
No
Mounting Style
Pendant
Lens Color
Red
Wattage
1 W
Operating Temperature - Maximum
40 Degrees C
NEMA Rating
NEMA 4X
Light Source
LED
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Operating Temperature - Minimum
-40 Degrees C
Operating Voltage
120 to 240 V AC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 420 Microflashes, Housing Material 30 Percent Glass Filled Thermoset Polyester, Mounting Pendant, Voltage 120-240V AC
