  9. Digital Clamp Meter, Backlit LCD, 400 A A, 1.6 in (41 mm) Jaw Capacity, CAT III 600V Safety Rating

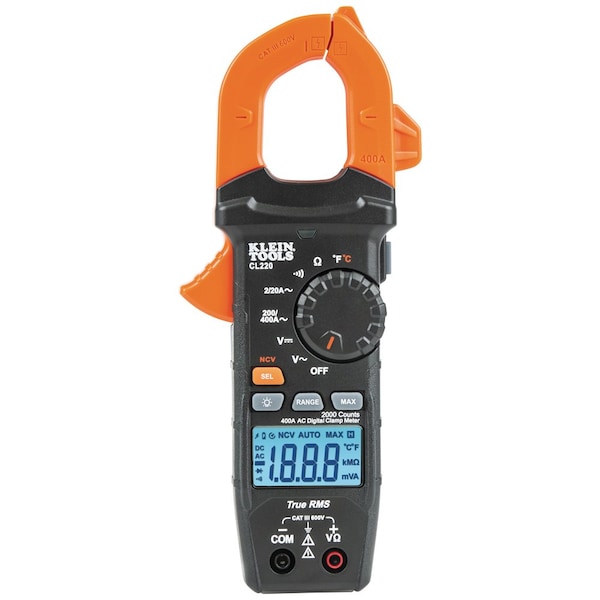

Klein Tools Digital Clamp Meter, Backlit LCD, 400 A A, 1.6 in (41 mm) Jaw Capacity, CAT III 600V Safety Rating CL220 - main

Digital Clamp Meter, Backlit LCD, 400 A A, 1.6 in (41 mm) Jaw Capacity, CAT III 600V Safety Rating

  • Mfr # CL220

  • Zoro # G3969280

product price: $74.97
/ea

Key Features

Digital/Analog
Digital
Max. AC Amps
400 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
20 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL220
Zoro #
G3969280
UPC #
092644692857
Country of Origin
China

Dimensions

Cable Length (Ft.)
8.45" (21.5 cm)
Jaw Size
1.6" (4.1 cm)
Overall Width
3.5 in
Overall Height
1.5 in
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
400 A
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
20 megaohm
Jaw Capacity
1.6 in (41 mm)
Temp. Range
-40degree - 1832degreeF (-40degree - 1000degreeC)
Safety Rating
CAT III 600V
Display
Backlit LCD
Jaw Opening
1.6 in
Max. AC Volts
600 V
Voltage Accuracy
600 V AC/DC
Calibration Frequency
45 to 400Hz
Diode Test
No
Battery Type
(3) AAA
Auto Ranging
Yes
Thermometer Type
Type K Thermocouple
Data Logging
No
Non-Contact Voltage Detector
Yes
Special Features
Added Temperature, Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy, NCVT
AC Response
TRMS
Auto Power Off
Yes
Data Hold
Yes
Standards
CE
Includes
Carrying Case, Test Leads, Thermocouple
Counts
2,000
Audible Continuity
Yes
Batteries Included
Yes
Maximum DC Voltage Measurement
600 V
Intrinsically Safe
No
Maximum Operating Temperature
1,832 Degrees F
Display Type
Backlit LCD
Basic AC Voltage Accuracy
+/-2.50% + 10 Digits
AC Response Calculation
TRMS
Basic AC Current Accuracy
+/-2.0% + 10 Digits
Maximum AC Current Measurement
400 A
Instrument Counts
2,000
Basic DC Voltage Accuracy
+/-1.00% + 8 Digits
Resistance Measurement Accuracy
+/-2.0% + 5 Digits
Minimum Operating Temperature
-40 Degrees F
DC Voltage Measurement Resolution
1 V
Waterproof
No
Current Leakage Testing
No
AC Voltage Measurement Resolution
1 V
Parameters Measured
AC Current, AC Voltage, DC Voltage, Resistance, Temperature (K)
Calibration Certificate Included
No
Jaw Style
Clamp-Jaw
AC Current Measurement Resolution
1 A
Maximum AC Voltage Measurement
600 V
Maximum Resistance Measurement
20 megaohm
Removable Screen
No
Thermal Imaging
No
Resistance Measurement Resolution
10 microohm
Dustproof
No
Bluetooth Compatible
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Voltage, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No, Thermal Imaging No, Removable Screen No
