  9. Digital Clamp Meter, LCD, 600 A, 1.4 in (36 mm) Jaw Capacity, CAT IV 600V Safety Rating

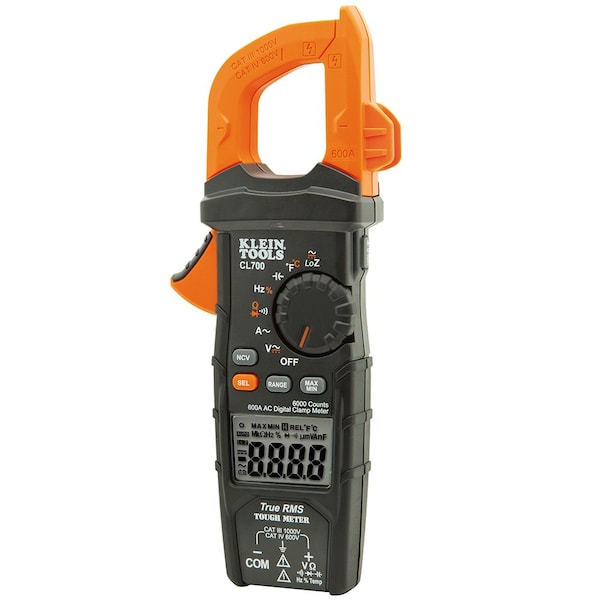

Klein Tools Digital Clamp Meter, LCD, 600 A, 1.4 in (36 mm) Jaw Capacity, CAT IV 600V Safety Rating CL700 - main

Digital Clamp Meter, LCD, 600 A, 1.4 in (36 mm) Jaw Capacity, CAT IV 600V Safety Rating

  • Mfr # CL700

  • Zoro # G6411268

product price: $109.97
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL700
Zoro #
G6411268
UPC #
092644690150
Country of Origin
China

Dimensions

Max. Conductor Size
750 kcmil
Manufacturers Warranty Length
2 yr
Overall Width
3.8 in
Overall Height
1.6 in
Maximum Conductor Size
750MCM
Battery Size
AAA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
1,000 V
Max. Ohms
60 megaohm
Jaw Capacity
1.4 in (36 mm)
Temp. Range
-14 Degrees to 1000 Degrees F
Safety Rating
CAT IV 600V
Display
LCD
Jaw Opening
1.38 in
Max. DC Amps
No Range
Max. AC Volts
1,000 V
Calibration Frequency
45 to 400 Hz
Non-Contact Voltage Detector
Yes
Capacitance
6,000 uF
Operating Temp.
32 Degrees to 104 Degrees F
Bar Graph
No
Audible Continuity
Yes
Inrush
No
Standards
CE
Memory
Max/Min
Thermometer Type
Type K Thermocouple
Includes
Carrying Case, Test Leads, Thermocouple with Adapter
AC Response
TRMS
AC Current Accuracy
+/-2.0% + 5 Digits
Battery Type
AA
Peak Hold
Yes
Data Hold
Yes
Auto Ranging
Yes
Counts
6,000
Midscale Resistance
30 ohm
Auto Power Off
Yes
Frequency Counter
1 Hz to 500 KHz
Diode Test
Yes
Special Features
Low Battery Indicator
Data Logging
No
Intrinsically Safe
No
Basic AC Voltage Accuracy
+/-1.50% + 5 Digits
Basic AC Current Accuracy
+/-2.00% + 5 Digits
Maximum DC Voltage Measurement
1,000 V
Waterproof
No
Display Type
LCD
Capacitance Measurement Resolution
1 uF
Maximum AC Current Measurement
600 A
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature (K)
Calibration Certificate Included
No
Jaw Style
Clamp-Jaw
Frequency Measurement Accuracy
+/-1% + 5 Digits
Batteries Included
Yes
AC Voltage Measurement Resolution
1 V
IP Rating
IP40
Dustproof
No
Maximum Operating Temperature
1,000 Degrees F
Resistance Measurement Resolution
10 microohm
Bluetooth Compatible
No
Removable Screen
No
DC Voltage Measurement Resolution
1 V
Maximum Capacitance Measurement
6,000 uF
Thermal Imaging
No
AC Current Measurement Resolution
100 mA
Minimum Operating Temperature
-14 Degrees F
Inrush Current Measurable
No
Maximum AC Voltage Measurement
1,000 V
Resistance Measurement Accuracy
+/-1.5% + 5 Digits
Bar Graph Included
No
Basic DC Voltage Accuracy
+/-1.20% + 3 Digits
Capacitance Measurement Accuracy
+/-3% + 5 Digits
AC Response Calculation
TRMS
Instrument Counts
6,000
Current Leakage Testing
No
Maximum Resistance Measurement
60 megaohm

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, AC Voltage, Capacitance, DC Voltage, Resistance, Temperature, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging No, Thermal Imaging No
