  9. Dual Range Non-Contact Voltage Tester with Flashlight, 12 - 1000V AC
Klein Tools Dual Range Non-Contact Voltage Tester with Flashlight, 12 - 1000V AC NCVT3P - main

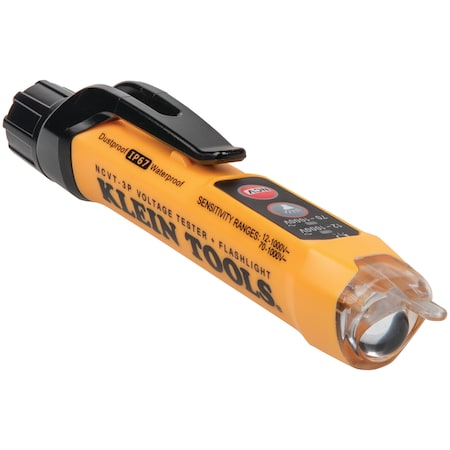

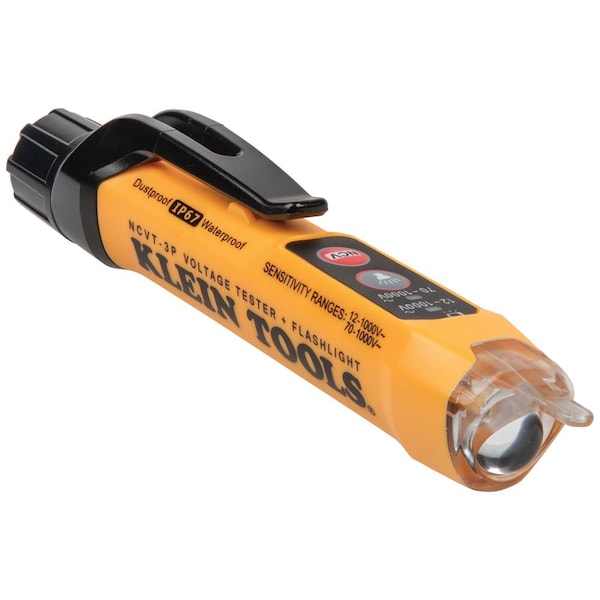

Dual Range Non-Contact Voltage Tester with Flashlight, 12 - 1000V AC

  • Mfr # NCVT3P

  • Zoro # G3969256

product price: $29.97
/ea

Key Features

Safety Rating
CAT IV 1000V
Power Source
Battery
Voltage Accuracy
12 - 1000V AC
Calibration Frequency
50 - 500 Hz
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NCVT3P
Zoro #
G3969256
UPC #
092644693236
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Cable Length (Ft.)
5.70" (14.5 cm)
Depth
1 3/32 in
Width
15/16 in
Length
5 45/64 in
Length (Straight Wireway)
5 7/10 in
Battery Size
AAA
Manufacturer Warranty Length
2 yr
Tool Length
5.7 in
Tool Width
1.1 in
Tool Height
0.9 in

Details

Item
Voltage Tester
Safety Rating
CAT IV 1000V
Power Source
Battery
Voltage Accuracy
12 - 1000V AC
Calibration Frequency
50 - 500 Hz
Auto Power Off
Yes
Standards
CAT IV 1000V
Special Features
Two Distinctive Modes: 70 to 1000V AC and 12 to 1000V AC; Flashlight
Includes
Batteries
Battery Type
Dual Range with Flashlight
Features
6.6 ft (2 M) Drop Protection, Auto-Power Off Conserves and Extends Battery Life, Green Light Indicates No Voltage, Dustproof and Waterproof, Lightweight, Compact Tool with Pocket Clip Provides Easy Storage and Quick Access, Screw-Thread Battery Cap with O-Ring Ensures Protection Against Dust and Water Ingress, Non-Contact Detection of Low Voltage
Power Settings
Auto Off
Test Connection Type
Non-Contact Probe Tip
Audible Alert
Yes
IP Rating
IP67
Switch Type_Org Design Only
Dial, Push Button, Slide
Safety Rating_BACKGROUND
NCVT3P CAT IV 1000V
Cat Safety Rating_Background Combined
CAT IV 1000V
Minimum AC Voltage Measured
12 V
Flashlight
Yes
CAT Safety Rating
CAT IV 1000V
Voltage Range
12 to 1000V AC, 70 to 1000V AC
Additional Features_COMBINED
NCVT3P
Tester Type
Voltage Detector/Tester
Maximum AC Voltage Measured
1,000 V
Built-In Flashlight
Yes
Testing Functions
AC Voltage, DC Voltage
Indication
Audible, Visual
Includes Batteries
Yes
Non-Contact
Yes
Current Range
12 to 1000V AC; 70 to 1000V AC
Switch Type
Button for Range Selection
Product Type
Non-Contact Voltage Detectors
Power Settings Combined
6.6 ft (2 M) Drop Protection NCVT3P, Auto-Power Off Conserves and Extends Battery Life NCVT3P, Dustproof and Waterproof NCVT3P, Green Light Indicates No Voltage NCVT3P, Lightweight, Compact Tool with Pocket Clip Provides Easy Storage and Quick Access NCVT3P, Non-Contact Detection of Low Voltage NCVT3P, Screw-Thread Battery Cap with O-Ring Ensures Protection Against Dust and Water Ingress NCVT3P
Number of Batteries Required
1
Display Type
No Display
Display Screen Type
No Display
Product Type_Broad
Voltage Testers
Product Type_Filter
NCVT3P
Alert Type
Light, Sound
On/Off Switch
Yes

Description

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.


•Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
•Detects voltage with simultaneous visual and audible voltage indicators
•Bright flashlight illuminates work area and may be used independent of voltage detection function
•Green light indicates no voltage
•Lightweight, compact tool with pocket clip provides convenient storage and quick access
•Auto power-off feature conserves and extends battery life
•CAT IV 1000V rating provides expanded operation and protection
•Screw-thread battery cap with O-ring ensures protection against dust and water ingress
•6.6-Foot (2 m) drop protection
•IP67: Dustproof and waterproof
•Conforms to CE requirements
•US Patent 10,073,142, D750,985 and other patents pending
