  9. Infrared Camera, 50 mK, 480 x 320 Display, 55.6 Degree +/- 2.8 Degree

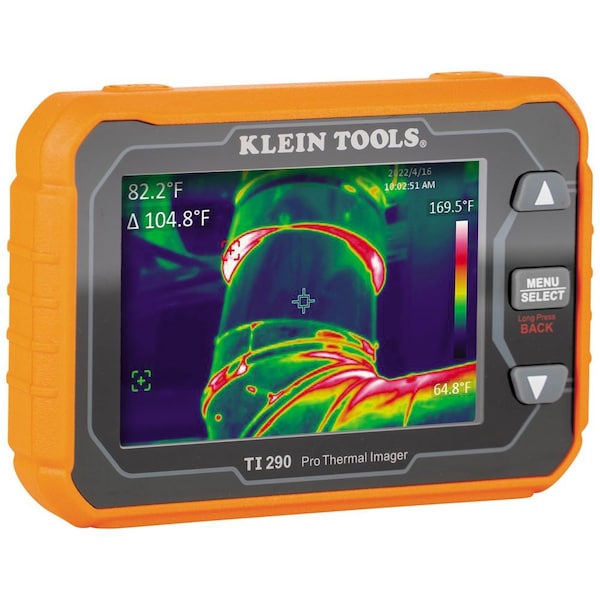

Klein Tools Infrared Camera, 50 mK, 480 x 320 Display, 55.6 Degree +/- 2.8 Degree TI290 - main

Infrared Camera, 50 mK, 480 x 320 Display, 55.6 Degree +/- 2.8 Degree

  • Mfr # TI290

  • Zoro # G508049706

product price: $716.99
/ea
Free Shipping & Returns

Key Features

Field of View
55.6° +/- 2.8°
Features
Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
Thermal Sensitivity
50 mK
Focus Method
Fixed
Display Resolution
480 x 320
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TI290
Zoro #
G508049706
UPC #
092644693625
Country of Origin
China

Dimensions

Display Size
3.5 in
Length
3.1"
Width
1.06"
Height
4.48"

Details

Item
Infrared Camera
Field of View
55.6° +/- 2.8°
Features
Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
Thermal Sensitivity
50 mK
Focus Method
Fixed
Display Resolution
480 x 320
Visual Light Resolution
0.04915 MP
File Formats
JPEG
Includes
Rechargeable Thermal Imager, USB Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions
Standards
CE and UKCA
Material
ABS and Electronic Components
Emissivity
0.01 to 0.99
Thermal Sensitivity - IR Camera
<50 mK
Temp. Range (C) - Infrared
-4° to 752°F (-20° to 400°C)
Application
View Hot and Cold Spots for Instant Troubleshooting
Resolution
3.5'' (8.9 cm) TFT LCD, 49,152 Pixels
Weight
7.5 oz
Temp. Accuracy (F)
±2°C (±3.6°F) or 2%, Whichever is Greater
Spectral Response - Infrared
8 to 14μm
Maximum Temperature Measured Degrees F
752 Degrees F
Maximum Emissivity Setting
0.99
Battery Chemistry
Lithium Ion
Minimum Temperature Measured Degrees F
-4 Degrees F
Auto Power Off
Yes
Battery Voltage
3.7V
Accuracy Degrees C
+/-2 Degrees C or 2.0% Whichever is Greater
Frame Rate
9 Hz
Accuracy Degrees F
+/-3.6 Degrees F or 2.0% Whichever is Greater
Alert Type
Sound
Maximum Operating Temperature Degrees F
113 Degrees F
Temperature Alerts
High Temperature, Low Temperature
Infrared Resolution
480 x 320
Minimum Focus Distance
Not Rated
Interface
Wireless
Maximum Temperature Measured Degrees C
400 Degrees C
Digital Display Screen Type
TFT LCD
Portability
Handheld
Laser Sighting Type
No Laser Sighting
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Operating Temperature Degrees F
32 Degrees F
Emissivity Adjustability
Adjustable
Minimum Emissivity Setting
0.01
Minimum Temperature Measured Degrees C
-20 Degrees C
Data Transfer Type
Wireless

Description

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 49,000 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play store and in the App Store.


•Thermal Imager has over 49,000 pixels to troubleshoot hot and cold spots
•Easily capture, store and share thermal images with Wi-Fi capabilities
•User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
•Adjustable emissivity from 0.01 to 0.99
•Select color palettes to best capture the event; ironbow, rainbow, or grayscale
•Rechargeable lithium-ion battery
•App is available for free in Google Play store and in the App Store
•Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
•Durable 6.6-Foot (2 m) drop test protection

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
