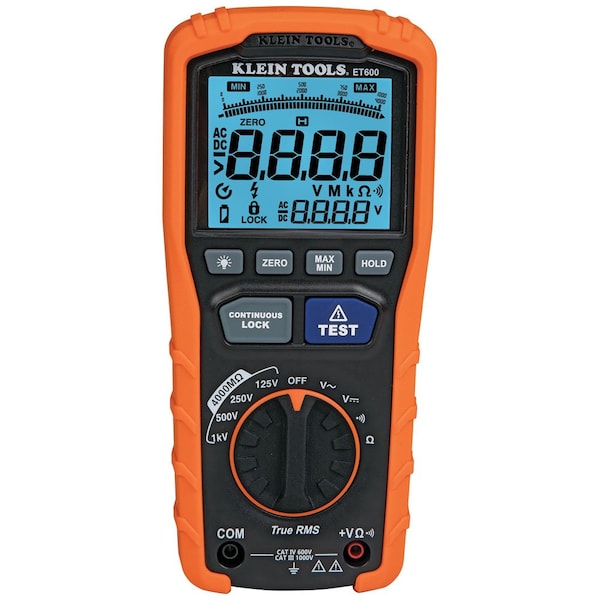

Klein Tools Insulation Resistance Tester ET600 - main

Insulation Resistance Tester

  • Mfr # ET600

  • Zoro # G3170370

product price: $210.99
/ea
Free Shipping & Returns

Key Features

Ground Resistance Range
4000MΩ
Calibration Certificate
None
Auto Power Off
Yes
Display
4000 Count LCD
Resistance Accuracy
Up to 4000 megaohm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ET600
Zoro #
G3170370
UPC #
092644692420
Country of Origin
China

Dimensions

Battery Size
AA
Tool Height
2.3 in
Tool Length
7.9 in
Tool Width
3.6 in

Details

Item
Insulation Resistance Tester
Ground Resistance Range
4000MΩ
Calibration Certificate
None
Auto Power Off
Yes
Display
4000 Count LCD
Resistance Accuracy
Up to 4000 megaohm
Includes
CAT III/CAT IV Safety Rated Test Leads, Heavy-duty Alligator Clip Test Leads, Batteries, Carrying Case, and Instruction Manual
Standards
CE, cETLus, EN61557-1, EN61557-2, EN61557-4
Special Features
Lock Button for Insulation Resistance Testing
Power Source
Battery
Features
Built-In Stand and Optional Magnetic Hanger for Hands Free Operation, Megohmmeter with Test and Lock Buttons
Live Circuit Voltage
0 to 1,000V AC/DC
Input Impedance
10 megaohm
Test Voltage
1,000V DC, 250V DC, 500V DC
Insulation Limit Alarm
Yes
Minimum Insulation Resistance
125 kiloohm
Display Screen Type
LCD
Includes Batteries
Yes
Dustproof
Yes
Testing Functions
AC/DC Voltage, Continuity, Insulation Resistance
Battery Chemistry
Alkaline
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Remote Test Probe Included
Yes
Backlit Digital Display
Yes
Maximum Insulation Resistance
4,000 megaohm
Alert Type
Sound
Auto Ranging
Yes
Display Type
Digital
Pass/Fail Selection Limits
No
Waterproof
No
PI/DAR Testing
Yes
Maximum DC Voltage Measured
1,000 V DC
Bluetooth Compatible
No
Minimum Operating Temperature
14 Degrees F
Insulation Resistance Resolution
0.001 megaohm, 0.01 megaohm, 0.1 megaohm, 1 megaohm
Number of Batteries Required
6
Test Current
1 mA
Maximum AC Voltage Measured
1,000 V AC
USB Data Download Included
No
Parameters Measured
AC Voltage, Continuity, DC Voltage, Insulation Resistance
Operating Voltage
7.21 to 9.13V
Maximum Operating Temperature
122 Degrees F
Greater Than 30V Warning
No
Timed Ramp Voltage Test
Yes
Data Logger
Yes
Capacitance Auto Discharge
No
IP Rating
IP40
Minimum DC Voltage Measured
125 V DC

Description

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000M?. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.


•Voltage Tester tests insulation resistance up to 4000M? at 125V, 250V, 500V, and 1000V DC
•Megohmmeter with test and lock buttons for simple insulation testing
•Warning alarm and high voltage icon for detection of voltage
•Measures up to 1000V AC/DC, resistance, and continuity
•Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
•Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
•Low battery indicator with easily replaceable battery and fuse
•Built-in stand and optional magnetic hanger for hands free operation
•Test verification of conformity to EN61557-1,-2,-4
•CAT IV 600V and CAT III 1000V safety rating
•Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
