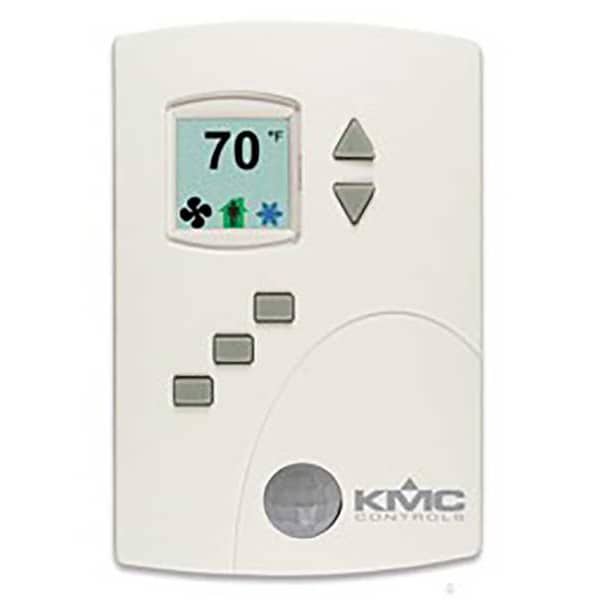

Kmc Controls Controller, BACnet, Rooftop Units, Split BAC-4201CW0002 - main

Controller, BACnet, Rooftop Units, Split

  • Mfr # BAC-4201CW0002

  • Zoro # G8302217

product price: $568.99
/ea
Free Shipping & Returns

Key Features

Type
BACnet
Voltage
24V AC
Includes
Backplate
Connection
Screw Terminals
For Use With
Rooftop Units, Split Systems
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BAC-4201CW0002
Zoro #
G8302217
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
1 in x 1-3/64 in
Overall Width
3 1/2 in
Overall Height
5 1/8 in
Screen Width
1 in
Sensor Length
33 ft
Overall Depth
1 1/8 in
Screen Height
1 1/16 in

Details

Type
BACnet
Voltage
24V AC
Includes
Backplate
Connection
Screw Terminals
For Use With
Rooftop Units, Split Systems
Inputs
Thermistors Type II or III
Outputs
Analog/Binary
Item
Controller
Features
Suitable for Standalone or BACnet MS/TP Operation, New or Retrofit, Full Color Display, Network Ready
Agency Compliance
UL 916 Energy Management Equipment, FCC Class A, Part 15, Subpart B, Canadian ICES-003 Class B, BACnet Testing Laboratory, SASO PCP Registration KSA R-103277
Display
LCD
Control Type
Push Button
Control Output
Single Stage RTU/Heat Pump with Economizer, Two Stage RTU/Heat Pump with Economizer
Minimum Operating Temperature
32 Degrees F
Backlit Screen
Yes
Occupancy Sensor
Includes Onboard Occupancy Sensor
Operating Temperature Range
32 Degrees F to 140 Degrees F
Network Protocol Compatibility
BACnet MS/TP
Temperature Scale
Fahrenheit/Celsius
Housing Material
Plastic
Number of Pipes
2, 4
Thermostat Type
Low Voltage
Number of Poles
1
Frequency
50 Hz, 60 Hz
Display Type
Digital
Number of Relay Inputs
0
Housing Type
Flame Retardent Housing
Backlit Type
Motion Activated
Humidification/Dehumidification Control
No, No
Remote Control Functions
Temperature Control
Compatible System Type
RTU's
Temperature Sensitivity
+/- 0.36 Degrees F
Contact Rating
24V AC
Dual Transformer Compatible
Yes
Sensor Type
Thermistor
Number of Relay Inputs/Outputs
0/6
Mounting Direction
Horizontal
Enclosure Color
White
Terminal Designations
-A;+B;AO6;AO7;AO8;BO5;COM;DAT;FAN-H;FAN-L;FAN-M;GND;RBO4;RS;WST
Number of Relay Outputs
6
Sensor Location
Remote
Lead Wire Gauge
14 ga, 22 ga
Switch Type
SPST
Number of Heating Stages - Conventional System
2
Housing Color
White
Maximum Operating Temperature
140 Degrees F
Application
Heat or Cool
Wireless
Hardwired
Number of Heating Stages - Heat Pump System
2
Dehumidification Control
No
Humidification Control
No
Number of Cooling Stages - Heat Pump System
2
Electrical Connection Type
Hardwired
Amperage
1 A
Standards
ANSI/ASHRAE BACnet Standard 135-2008, BACnet Testing Laboratory listed, FCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class B, SASO PCP Registration KSA R-103260, UL 916 Energy Management Equipment
Temperature Adjustment
On/Off

Description

Controller, BACnet, Voltage 24VAC, Connection Screw Terminals, Thermistors Type II or III Inputs, Analog/Binary Outputs, LCD Display, 1 In. x 1-3/64 In., Features Suitable for Standalone or BACnet MS/TP Operation, New or Retrofit, Full Color Display, Network Ready, Includes Backplate, For Use With Rooftop Units, Split Systems
