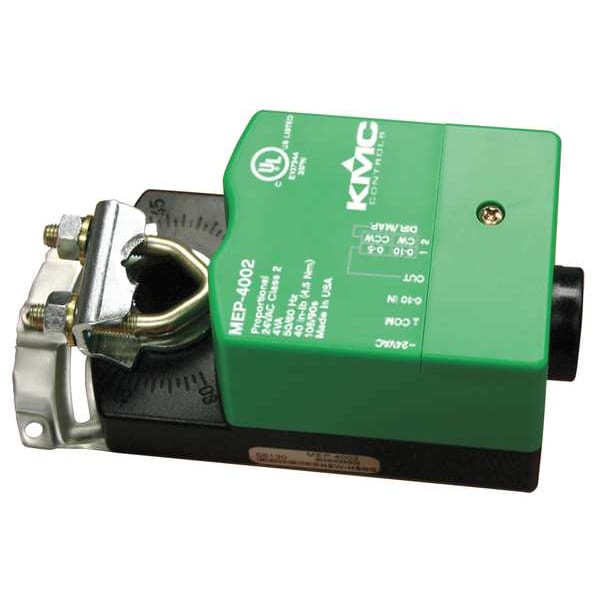

Electric Actuator, 40 in.-lb., Proprtional

  • Mfr # MEP-4002
  • Zoro # G0290701
product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
Direct Mount
Spring Return
Non-Spring Return
Signal Type
Proportional
Torque
40 in-lb
Voltage
24V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MEP-4002
Zoro #
G0290701
UPC #
-
Country of Origin
United States

Dimensions

Width
2 5/8 in
Height
2 1/2 in
Depth
5 3/8 in
Overall Width
2 5/8 in
For Shaft Width
1/2 in
For Shaft Height
1/2 in
Overall Depth
5 1/4 in
For Shaft Diameter
5/8 in
Overall Height
2 1/2 in

Details

Mounting Type
Direct Mount
Spring Return
Non-Spring Return
Signal Type
Proportional
Torque
40 in-lb
Voltage
24V AC
Type
Non-Spring Return
Motor Direction
CW or CCW
Timing
90 sec
Ambient Temp. Range
-22 Degrees to 131 Degrees F
Power Consumption
4 VA
Includes
Non-Rotation Bracket
Shaft Type
1/4 in to 5/8 in Round or 1/4 in to 7/16 in Square
Item
Actuator
Electrical Connections
22-14 AWG Wire Clamp
For Use With
Dampers or Valves that Require Up to 40 in-lb of Torque
Stroke Deg.
0 to 95
Housing Material
Polymer
Rated Torque
40 in-lb
Output Signal
0 to 10V DC
Minimum Operating Temperature
-22 Degrees F
Number of Auxiliary Switches
0
Maximum Operating Temperature
131 Degrees F
For Shaft Shape
Round, Square
Product Type
Actuator
For Use With Building Automation Systems
Building Automation System Compatible
Time to Close
90 sec
Compatible with Series
BC, BX, VFB-43, VFB-46
Shaft Rotation
CW/CCW
Stroke Degree
0 to 95 Degrees
Contact Form
SPDT
NEMA Rating
2
IP Rating
IP54
Weight
1.1 lb
Valve Application
Damper and Valve
Standards
CE Certified, Complies with Canadian ICES-003, FCC Class B, Part 15, Subpart B, UL 873
Input Voltage
24V AC
Electrical Connection Type
Hardwired
Application
Dampers, Valves, VAV Boxes
Compatible Series
BC, BX, VFB-43, VFB-46
Compatible Product Type
Dampers or Valves that Require Up to 40 in-lb of Torque

Description

Actuator, Valve Application Damper and Valve, Signal Type Proportional, Rated Torque 40 in-lb, Input Voltage 24V AC, Output Signal 0 to 10V DC, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Time to Close 90 sec, Shaft Type 1/4 in to 5/8 in Round or 1/4 in to 7/16 in Square, Shaft Rotation CW/CCW, Stroke Degree 0 to 95 Degrees
