Kmc Controls

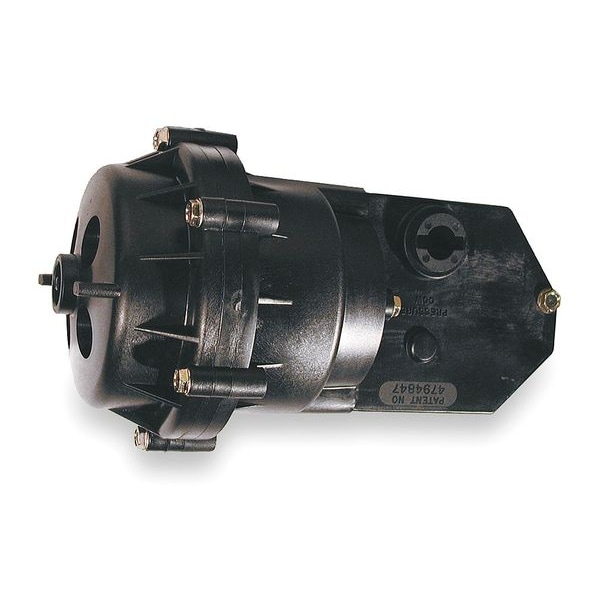

Rotary Pneumatic Actuator, Fixed

original price: $87.19
13% off
new price: $74.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operating PSI Range 0 to 20
  • Max. Air Pressure 30 psi
  • Nominal Spring Range 3 to 8 psi
  • Mounting Type Fixed
  • Includes Mounting bracket
See all product information

Product Information

Dimensions

Width 4 1/2 in
Height 4 1/2 in
Length 8 1/4 in
Overall Length 8 5/16 in
Overall Width 4 1/2 in
Air Connection Size 3/16 in
Overall Depth 4 1/2 in

Details

Item Pneumatic Damper Actuator
Operating PSI Range 0 to 20
Max. Air Pressure 30 psi
Nominal Spring Range 3 to 8 psi
Mounting Type Fixed
Includes Mounting bracket
Provides CW or CCW Motion
Net Force Exerted @ 0 PSI 25 lb
Net Force Exerted @ 18 PSI 102 lb
For Use With VAV Terminals, Small Dampers, and Valves
Application Dampers, VAV Terminals
Includes Positioner Positioner Not Included
Normal Rotation 100 Degrees
Operating Temperature - Minimum -20 Degrees F
For Media Air
Diaphragm Material Neoprene
Force at 0 psi 25 lbf
Spring Range Maximum 8 psi
Installation Orientation Versatile
Control Pressure - Maximum 20 psi
Spring Range Minimum 3 psi
Actuator Connection Bracket
Operating Temperature - Maximum 180 Degrees F
Air Connection Type Barbed Hose, Push-On
Mounting Hardware Included Bracket
Air Connection Gender Male
Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications
Actuator Type Rotary
Manufacturer Series MCP

Description

Pneumatic Damper Actuator, Actuator Connection Bracket, Actuator Type Rotary, Air Connection Gender Male, Air Connection Size 3/16 in, Air Connection Type Barbed Hose, Push-On, Application Dampers, VAV Terminals, Control Pressure - Maximum 20 psi, Diaphragm Material Neoprene, Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications, For Media Air, Force at 0 psi 25 lbf, Includes Positioner Positioner Not Included, Installation Orientation Versatile, Manufacturer Series MCP
