- Item

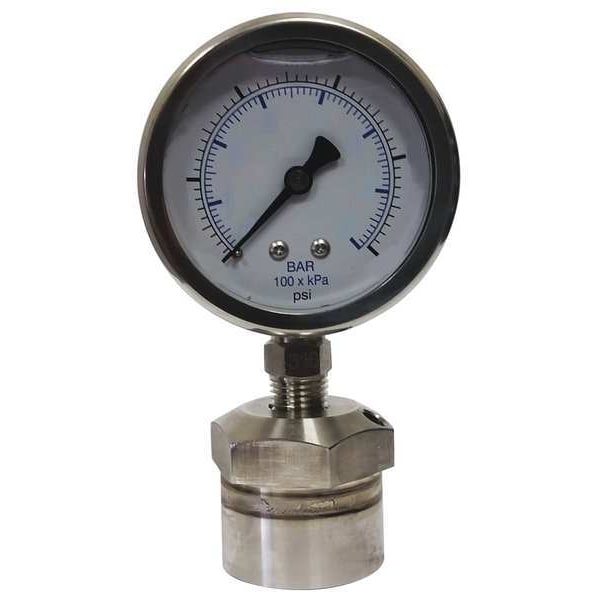

- Pressure Gauge with Diaphragm Seal
- Accuracy
- +/-1.60%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Highly Corrosive, Chemical Industries, Hydraulics, Pumps, R/O Systems
- Gauge Case Material
- 304 Stainless Steel
- Series
- KC301; DSM35
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 0 to 60
- Primary Scale Units
- psi
- IP/NEMA Rating
- NEMA 4X
- Liquid-Filled Case
- Yes
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Gauge Special Options
- Heavy Duty
- Smallest Graduation
- 1 psi
- Gauge Application
- Hydraulic and Pneumatic Applications; Pumps; Chemical Feed Systems; R/O Systems
- For Use With
- Thick or Corrosive Medias Compatible with 316 Stainless Steel
- Case Color
- Stainless Steel
- Graduations
- 10 psi
- Gauge Primary Range Smallest Graduation
- 1
- Gauge Primary Range Numbered Graduations
- 10
- Calibration Certificate Included
- No
- Includes
- Mini Diaphragm Seal
- Gauge Filled With
- Glycerin
- Socket Material
- 316 Stainless Steel
- Case Material
- 304 Stainless Steel
- Wetted Materials
- Stainless Steel
- Standards
- NIST
- Connection Type
- FNPT
- Cleaned for Oxygen Service
- No
- Diaphragm Seal Type
- Welded
- Primary Scale Numeric Increments
- 10
- Pressure Gauge Type
- Industrial Pressure Gauge with Diaphragm Seal
- Compatible Process Media
- Thick or Corrosive Media Compatible with 316 Stainless Steel
- Pointer Color
- Black
- Accuracy Scale
- Full Scale
- Ambient Operating Temperature Range
- 20 Degrees to 160 Degrees F
- Seal Lower Housing Material
- 316 Stainless Steel
- Includes Vent Plug
- No
- Secondary Scale Units
- bar
- Dial Color
- White
- Case Construction
- Corrosion Resistant
- Includes Mounting Hardware
- No
- Bezel Mounting Type
- Crimped
- Gauge Case Liquid
- Glycerin
- Secondary Pressure Scale Color
- Blue
- Clog Resistant
- Yes
- Freeze Resistant Movement
- No
- Removable Bezel
- No
- Primary Scale Minor Graduations
- 1
- Secondary Pressure Range
- 0 to 4
- Seal Process Temperature Range
- -40 Degrees to 400 Degrees F
- Pressure Range Type
- Pressure
- Field Fillable
- Yes
- Process Connection Gender
- Female
- Pointer Material
- Aluminum
- Includes Calibration Certificate
- NIST with Data
- Seal External Material
- 316 Stainless Steel
- Adjustable Pointer
- No
- Diaphragm Seal Process Connection
- Threaded
- Dry Dampening Feature
- None
- Vibration Resistance
- Liquid-Filled
- Sensor Material
- 316 Stainless Steel
- Seal Maximum Working Pressure
- 2,500 psi
- Seal Compatible Process Media
- Air or Liquid Compatible with 316SS
- Seal Fill Liquid
- Mineral Oil
- Scale Type
- Dual
- Seal Diaphragm Material
- 316 Stainless Steel
- Maximum Pressure
- 60
- Diaphragm Seal Material
- 316 Stainless Steel
- Operating Temperature Range
- -30 Degrees to 200 Degrees F
- Secondary Scale Pressure Measurement - Maximum
- 4 bar
- NEMA Enclosure Rating
- 4X
- Secondary Scale Color
- Blue
- Resistance Properties
- Clog Resistant
- Operating Temperature - Minimum
- 20 Degrees F
- Seal Process Media Temperature - Minimum
- 0 Degrees F
- Operating Temperature - Maximum
- 160 Degrees F
- Seal Process Media Temperature - Maximum
- 328 Degrees F
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Primary Scale Pressure Measurement - Maximum
- 60 psi
- Seal Working Pressure - Maximum
- 78 psi
- Includes Acid Leak Detection
- No Acid Leak Detection Included
- Case Liquid
- Glycerin
- Secondary Scale Pressure Measurement - Minimum
- 0 bar
- Accuracy Grade
- ASME B40.100
