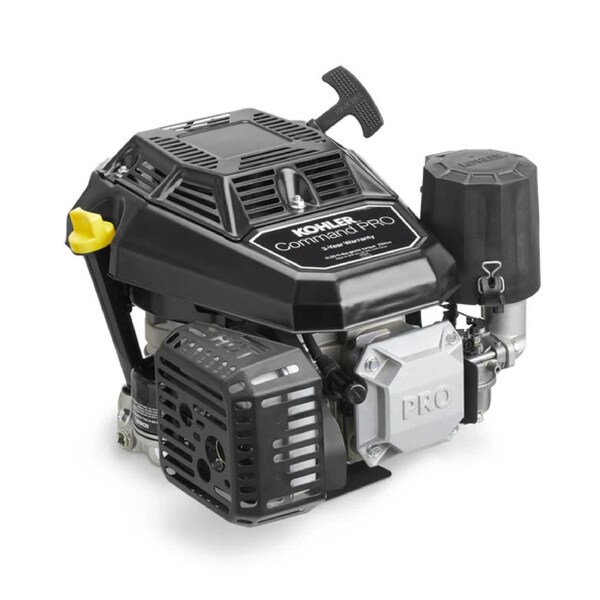

Kohler CV224 E16 MARKETING BASIC PA-CV224-3001 - main

CV224 E16 MARKETING BASIC

  • Mfr # PA-CV224-3001

  • Zoro # G610534695

product price: $659.99
/ea
Free Shipping & Returns

Key Features

Gross Torque
11 lb-ft
Shaft Orientation
Vertical
Air Cleaner Type
Quad Clean 4 Stage Cyclonic
Design
OHV
Recommended Use
Pressure Washer, String Trimmer, Tiller, Walk-Behind Mower
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PA-CV224-3001
Zoro #
G610534695
UPC #
885612683205
Country of Origin
United States

Dimensions

Overall Width
13 7/8 in
Shaft Diameter
0.2362/0.2372 in (I.D)
Overall Depth
15 11/16 in
Overall Height
11 1/8 in
Shaft Length
3 1/8 in

Details

Gross Torque
11 lb-ft
Shaft Orientation
Vertical
Air Cleaner Type
Quad Clean 4 Stage Cyclonic
Design
OHV
Recommended Use
Pressure Washer, String Trimmer, Tiller, Walk-Behind Mower
Maintenance Frequency
100 Hours/Annually Change Oil and Oil Filter, Clean Cooling Areas, Replace Fuel Filter, Clean Spark Arrestor, 300 Hours Replace Air Cleaner Element and Precleaner, Check and Replace Guide Plate, Check and Adjust Valve Clearance when Engine is Cold, Change Oil and Oil Filter (KOHLER PRO 10W-50 Oil and KOHLER PRO Filter Only), 50 Hours/Annually Service/Replace Precleaner, 500 Hours/Annually Replace Spark Plug and Set Gap, Every Use Check Oil Level, Check Air Cleaner, Check Precleaner
Item
Gasoline Engine
Rotation
Ccw At PTO End
Muffler
Yes
Shaft Configuration
Keyway
Ignition Type
Electronic
Features
3 Year Limited Commercial Warranty, Cast-Iron Cylinder Liners Add Durability and Engine Protection, Consistent-Cut(TM) Technology Maintains Engine Speed for a Cleaner Turf Cut, Even in Tall, Wet Grass, Easy Pours and Less Spilling with Accu-Fill(R) Fuel Tank's 45% Larger Angled Fuel Neck, Easy-Pull(TM) Technology, Enjoy Effortless Starts
Gear Box
Internal
Engine Brand
Kohler
Maximum Speed
2,600 RPM
Engine Cycle
4-Cycle
Horsepower
6 hp
Engine Series
CV224 Series
CARB Compliant
CARB Compliant
Fuel Tank Capacity
1.4 L
Standards
CARB Phase III, China Phase II, EPA Phase III, EU Stage V
Engine Displacement
224 cc
Start Type
Recoil
Number of Cylinders
1

Description

Gasoline Engine, Engine Series CV224 Series, Gross Torque 11 lb-ft, Horsepower 6 hp, Shaft Orientation Vertical, Shaft Configuration Keyway, Shaft Diameter 0.2362/0.2372 in (I.D), Shaft Length 3 1/8 in, Start Type Recoil, Maximum Speed 2,600 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Kohler, Engine Displacement 224 cc, Fuel Tank Capacity 1.4 L, Engine Cycle 4-Cycle, Overall Depth 15 11/16 in
