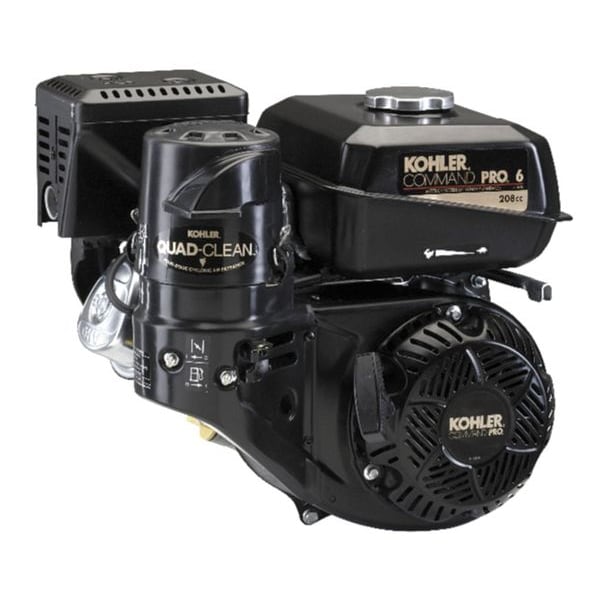

Kohler Gasoline Engine, 4 Cycle, 7 HP PA-CH270-3031 - main

Gasoline Engine, 4 Cycle, 7 HP

  • Mfr # PA-CH270-3031

  • Zoro # G6997164

product price: $849.99
/ea
Free Shipping & Returns

Key Features

Type
4 cycle
Gross Torque
10.5 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
3/4
Shaft Length (In.)
2 27/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PA-CH270-3031
Zoro #
G6997164
UPC #
885612019325
Country of Origin
China

Dimensions

Shaft Dia. (In.)
3/4
Shaft Length (In.)
2 27/64 in
Overall Width (In.)
15.15 in
PTO Shaft Height (In.)
4.17 in
Overall Height (In.)
14.03 in
PTO Shaft Dia. (In.)
0.75 in
Overall Depth (In.)
12.69 in
PTO Shaft Length (In.)
2.42 in
Shaft Height (In.)
4.17 in
Overall Depth Facing PTO (In.)
12.69 in
Overall Width
12 11/16 in
Overall Height
14 3/16 in
Shaft Diameter
3/4 in
Shaft Length
2 7/16 in
PTO Shaft Length
2 7/16 in
PTO Shaft Height
4 3/16 in
PTO Shaft Diameter
3/4 in
Shaft Height
4 3/16 in
Overall Depth Facing PTO
12 11/16 in
Overall Depth
15 3/16 in

Details

Type
4 cycle
HP
7 hp
Gross Torque
10.5 lb-ft
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
4.3 qt
Overall H Facing PTO (In.)
14.03 in
Overall W Facing PTO (In.)
15.15 in
Application
Conveyor, Log Splitter, Tiller, Two Wheeled Tractor, Utility, Vibrator
Agency Compliance
EPA
PTO Shaft Key (In.)
0.188 in
Air Filter
Pleated Paper Encased w/Perforated Metal/Foam Pre Cleaner
Maintenance Frequency
100 Hour Oil Change, 200 Hour Replace Air Filter
Recommended Use
Industrial/Construction
Ignition Type
Electronic
Item
Gasoline Engine
Bearings
Dual Ball
Includes
Amp Choke, Dual Oil Fill/Drain, Engine Mounted Throttle, Fuel Shut Off Valve, Remote Throttle Ready, Stellite Exhaust Valve, Variable Speed
Design
Overhead Valve
Rotation
CCW-SE
4 Cycle Engine
yes
Engine RPM
3,750 RPM
Starter Type
Recoil/Electric
Air Cleaner Type
Quad Clean 4 Stage Heavy Duty Cyclonic
Shaft Key (In.)
47/250 in
Shaft Configuration
Drilled and Tapped 1.125" Deep, 5/16 24 UNF
Muffler
Yes
Function
Brush Cutter, Conveyor, Log Splitter, Utility, Vibrator
Features
Power or Repower your Equipment without Expensive Modifications
Gear Box
Internal
RPM
3,750 RPM
Series
Command Pro
Start
Recoil/Electric
Low Oil Shut Down
Yes
Cylinders
Cast Iron Cylinder Liner
Standards
CARB Phase III, EPA Phase III, EU Stage V
Horsepower
7 hp
Engine Cycle
4-Cycle
Start Type
Recoil
Maximum Speed
4,000 RPM
Number of Cylinders
1
Shaft Key
3/16 in
Engine Series
CH270 Series
CARB Compliant
CARB Compliant
Overall H Facing PTO
14 in
Engine Displacement
208.12 cc
Engine Brand
Kohler
Overall W Facing PTO
15 1/8 in
Fuel Tank Capacity
4.2 qt

Description

Gasoline Engine, Engine Series CH270 Series, Gross Torque 10.5 lb-ft, Horsepower 7 hp, Shaft Orientation Horizontal, Shaft Configuration Drilled and Tapped 1.125 In. Deep, 5/16 24 UNF, Shaft Diameter 3/4 in, Shaft Length 2 7/16 in, Start Type Recoil, Maximum Speed 4,000 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Kohler, Engine Displacement 208.12 cc, Fuel Tank Capacity 4.2 qt, Engine Cycle 4-Cycle, Overall Depth 15 3/16 in, Overall Depth Facing PTO 12 11/16 in

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CA
