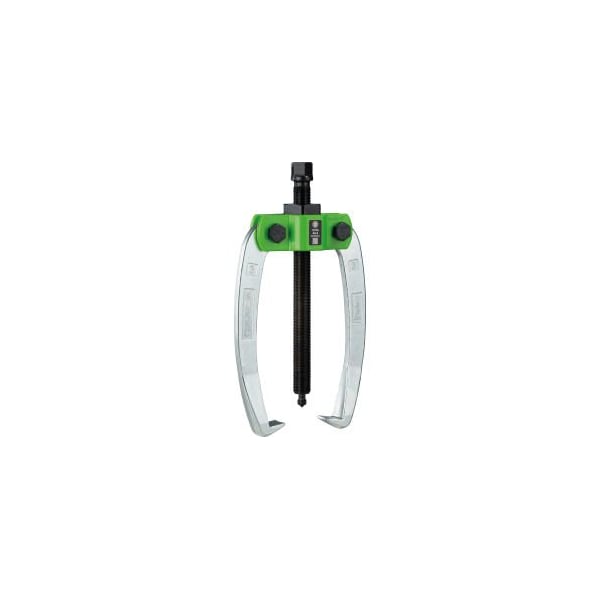

Kukko 2-Jaw Self Centering Puller, 6.5 Ton Capacity 7/8in To 6-3/8in Open, 6-3/8in Reach

For removing bearings, gears, discs, etc. spindle head band prevents the wrench from slipping off. almost all components available as replacement parts, time-saving order process thanks to numbering system. standard pulling hook. Automatic self-centering pulling hooks. Two-arm design for space-saving operation. Optimal adjustment of the spindle to the shaft with 2-sided spindle tip ball and tip. Mechanical pressure screw. Milled thread treated with special coating. The pulling hooks sliding parts must always sit stably and fully on the cross-beam. If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time. The pulling hooks support surfaces must always be straight and sit fully beneath the part to be removed. Do not use any electrical or pneumatic servo screwdrivers or hammer drills. Protective blanket required. Protective goggles required. hexagon drive male metric 19mm maximum load metric 6t space next to it metric 32mm space below 1/2 space below metric 12mm depth metric 160mm spread metric 23 - 160mm space next to it 1 1/4 maximum torque metric 140nm
