  11. 4" ID x 10 ft PVC Food/Beverage Hose Clear

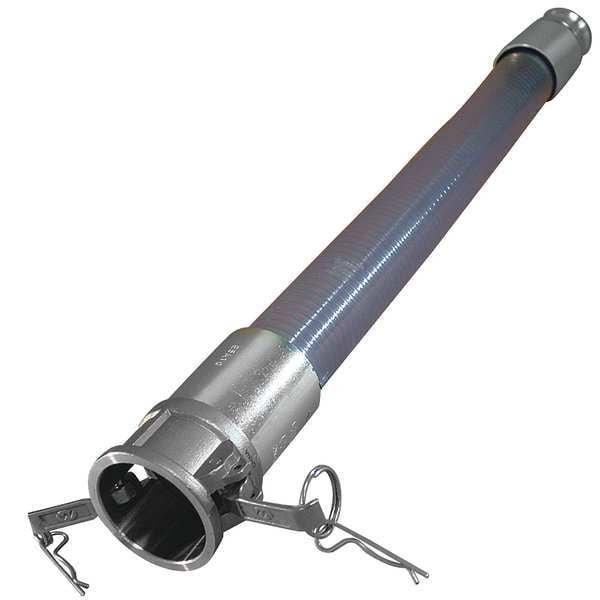

Kuriyama 4" ID x 10 ft PVC Food/Beverage Hose Clear FT400-10-ALCE - main

4" ID x 10 ft PVC Food/Beverage Hose Clear

  • Mfr # FT400-10-ALCE

  • Zoro # G2480801

product price: $497.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Hose Inside Dia.
4 in
Hose Color
Clear
Temp. Range
-4 Degrees to 150 Degrees F
Hose Cover Material
PVC
Safety Factor
4:1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FT400-10-ALCE
Zoro #
G2480801
UPC #
-
Country of Origin
United States

Dimensions

Hose Inside Dia.
4 in
Hose Length
10 ft
Hose Outside Dia.
4 1/2 in
Length
10 ft.
Length - Food Hose
10 ft.
Inside Dia. - Food Hose
4"
Inside Dia.
4"
Bend Radius
18 in
Outside Dia.
4-1/2"
Fitting Size
4 in x 4 in
Hose Fitting B Size
4 in
Hose Fitting A Size
4 in

Details

Item
Food/Beverage Hose
Hose Color
Clear
Temp. Range
-4 Degrees to 150 Degrees F
Hose Cover Material
PVC
Safety Factor
4:1
Tube Material
PVC
Fittings
Cam and Groove
Coupled Assembly / Bulk
Coupled Assembly
Wet or Dry Application
Wet and Dry
Reinforcement
PVC Helix
Color
Clear
Max. Pressure
50 psi
Max. Pressure - Food Hose
50 psi
Coupling Material
Aluminum
Hose Configuration
Coupled Assembly
Cover
PVC
Meets
3A 20-25, BSE/TSE, FDA CFR Title 21, ROHS and USDA
Agency Compliance
FDA, ROHS, USDA, BSE/TSE
Max. Vacuum
28" Hg
Max. Vacuum - Food Hose
28" Hg
Cover Material
PVC
Fitting Type
Cam and Groove C x Cam and Groove E
Fitting Material
Aluminum x Aluminum
Hose Fitting B Material
Aluminum
Max. Working Pressure @ 70 F
50 psi
Hose Reinforcement Material
PVC
Hose Fitting B Type
Cam and Groove E
Standards
BSE/TSE, FDA, ROHS, USDA
Hose Fitting A Material
Aluminum
Vacuum Rating
28.00 in Hg
Hose Tube Material
PVC
Hose Fitting A Type
Cam and Groove C
Hose Fittings
Aluminum 4 in Cam and Groove C x Aluminum 4 in Cam and Groove E
Compatible Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Dry Food, Fertilizers, Formic Acid, Fresh Water, Fungicides, Glycerin, Herbicides, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrogen Peroxide, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Pesticides, Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Wet Food
For Media Type
Acetic Acid, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid, Citric Acid, Dry Food, Fertilizers, Formic Acid, Fungicides, Glycerin, Herbicides, Hydrochloric Acid, Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Pesticides, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Wet Food
Not Recommended Chemicals
Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene

Description

Food/Beverage Hose, Hose Inside Dia. 4 in, Hose Outside Dia. 4 1/2 in, Hose Length 10 ft, Hose Tube Material PVC, Hose Cover Material PVC, Hose Reinforcement Type Helix, Hose Reinforcement Material PVC, Hose Color Clear, Vacuum Rating 28.00 in Hg, Max. Working Pressure @ 70 F 50 psi, Safety Factor 4:1, Temp. Range -4 Degrees to 150 Degrees F, Standards BSE/TSE, FDA, ROHS, USDA, Bend Radius 18 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 4 in, Hose Fitting B Size 4 in
