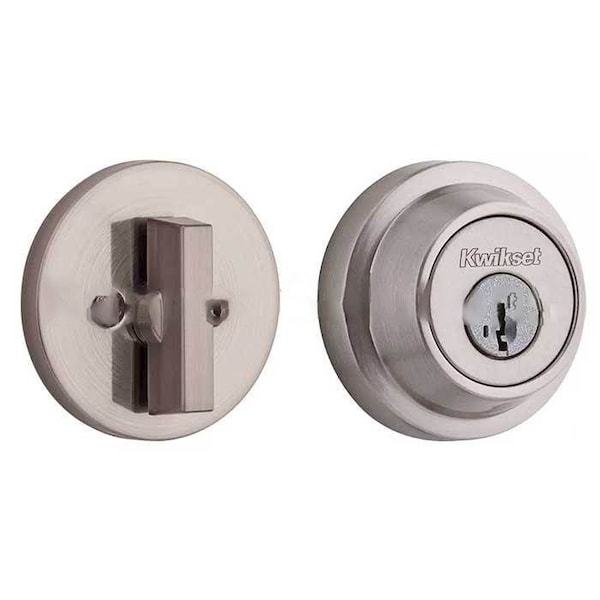

660 RDT Contemporary Single Cylinder Deadbolt

660 Contemporary Single Cylinder Deadbolt SmartKey with Round Corner Adjustable Latch and Round Corner Strike in Satin Nickel
660 RDT DeadboltFeaturing SmartKeyKwiksets Contemporary Deadbolt has a sleek and simple design.Priced affordably, this deadbolt offers achievable style while maintaining superior security.Features:

• Features SmartKey Re-Key Technologywith BumpGuard Protection
• ANSI/BHMA Grade 3 Certified Security & Quality

Specifications: Door Prep:

• 660, 665:
  • Cross Bore 2 1/8
  • Edge Bore 1
  • Latch face 1 x 2 1/4
• 663:
  • Crossbore 1-5/8
  • Edge Bore 1
  • Latch Face 1 x 2-1/4

Backset:

• 660, 665:
  • Adjustable latch standard
• 663:
  • Adjustable to 2 3/8 or 2 3/4 standard

Door Thickness:

• 660, 663, 665:
  • 1-3/8 1 -/4 doors standard

Cylinder:

• 660, 665:
  • SmartKey

Faceplates:

• 1 x 2-1/4
• Specify round corner, square corner or drive-in

Strikes:

• 1 x 2-1/4
• Specify round corner or square corner
• Other options available

Bolt:

• 1 throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Grade 3 Certified

ADA:

• Interior turn piece is in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA.

UL:

• N/A

Finishes:

• Venetian Bronze - 11P
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 3.
