660 Single Cylinder Deadbolt

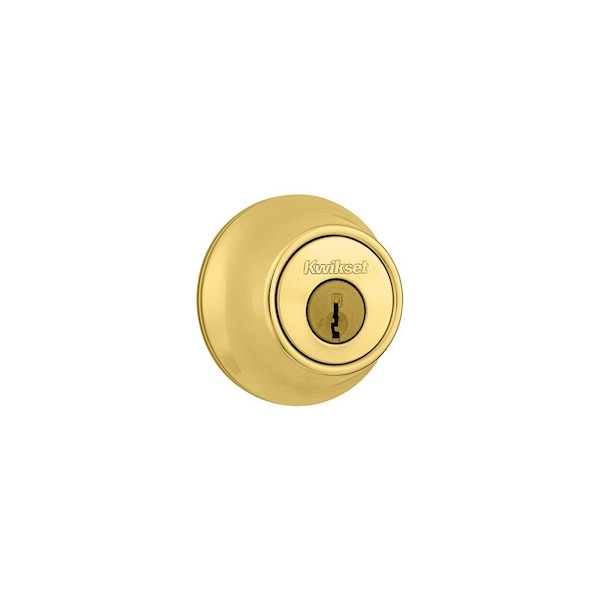

660 Round Single Cylinder Deadbolt with Round Corner Adjustable Latch and Round Corner Strike in Polished Brass
660 DeadboltFeaturing SmartKeyKwiksets 660 Deadbolt offers effective security at an affordable price.Features:

• Easy to Install
• Featuring SmartKey Security - protecting againstadvanced break-in techniques
• Features Microban antimicrobial finish protection*
• ANSI/BHMA Grade 3 Certified Security & Quality
• *Microban available in the following finishes:Polished Brass 3, Antique Brass 5, Satin Nickel 15, Venetian Bronze 11p,and Iron Black 514

Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge Bore 1
• Latch face 1 x 2 1/4

Backset:

• Adjustable to 2 3/8 or 2 3/4 standard

Door Thickness:

• 1 3/8 - 1 3/4 doors standard

Cylinder:

• SmartKey or 5-Pin Pin & Tumbler

Faceplates:

• 1 x 2 1/4
• Specify round corner, square corner or drive-in

Strikes:

• 1 x 2 1/4 full
• Specify round corner or square corner
• Other options available

Bolt:

• 1 throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• A156.2 Grade 3

ADA:

• Interior turn piece meets 4.13.9 ADA requirements

UL:

• N/A

Functions: 660 Single Cylinder:

• Deadbolt operated by key outside andthumb turn inside.

663 Thumb Turn Only:

• Deadbolt operated by thumb turn one side. No trim on exterior.

665 Double Cylinder:

• Deadbolt operated by key both sides

Finishes:

• *Polished Brass - 3
• *Antique Brass - 5
• *Venetian Bronze - 11P
• *Satin Nickel - 15
• Antique Nickel - 15A
• Polished Chrome - 26
• Satin Chrome - 26D
• *Microban
• Iron Black finish available in 660 only

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 3.
