660 SQT Single Cylinder Deadbolt

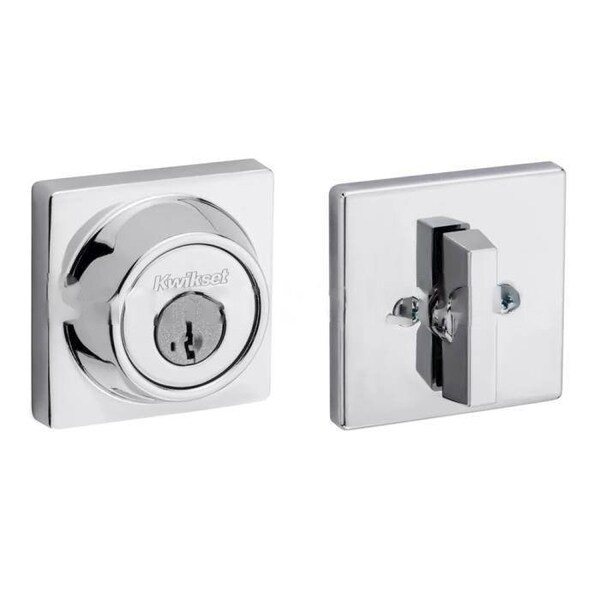

660 Square Single Cylinder Deadbolt SmartKey with Round Corner Adjustable Latch and Round Corner Strike in Polished Chrome
660 SQT DeadboltFeaturing SmartKeyKwiksets Contemporary Deadbolt has a sleek and simple design. Priced affordably, this deadbolt offers achievable style while maintaining superior security.Features:

• Featuring SmartKey Security - protecting againstadvanced break-in techniques
• Features Microban antimicrobial finish protection
• ANSI/BHMA Grade 3 Certified Security & Quality

Specifications: Door Prep:

• 660:
  • Cross Bore 2 1/8
  • Edge Bore 1
  • Latch face 1 x 2 1/4.
• 663:
  • Crossbore 1-5/8
  • Edge Bore 1
  • Latch Face 1 x 2-1/4.

Backset:

• 660:
  • Adjustable latch standard
• 663:
  • Adjustable to 2 3/8 standard x 2 3/4 optional.

Door Thickness:

• 660:
  • 1 3/8 1 3/4 doors standard.

Cylinder:

• 660:
  • SmartKey Security

Faceplates:

• 1 x 2-1/4
• Specify round corner, square corner or drive-in

Strikes:

• 1 x 2-1/4
• Specify round corner or square corner
• Other options available

Bolt:

• 1 throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Grade 3 Certified

ADA:

• Interior turn piece is in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA.

UL:

• N/A

Finishes:

• *Venetian Bronze - 11P
• *Satin Nickel - 15
• *Matte Black - 51
• Polished Chrome - 26
• Satin Chrome - 26D
• *Microban

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 3.
