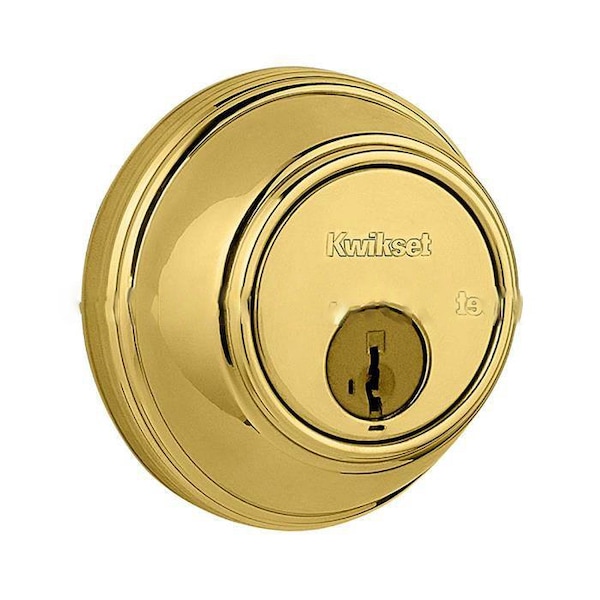

816 Key Control Deadbolt

SmartKey with 6 Way Adjustable Latch and Round Corner Strike in Polished Brass
816 DeadboltKey ControlThe smart alternative to master keying
Re-keying & managing a traditional master key system is labor intensive, time consuming & costly. With the first & only two cylinder Key Control Deadbolt, either cylinder can be re-keyed in seconds, without removing the lock from the door.Key Control:

• Two separate cylinders, Tenant & Property Manager,allow for more tenant key cuts than a traditionalmaster key system
• New proprietary keyway adds security - the tenant key will never fit into the Property Manager Cylinder
• The Property Manager Cylinder is concealed when not in use to avoid tenant confusion

Increased Efficiency:

• Re-key the lock without removing from the door
• Save time & money by re-keying yourself
• Maintain key control throughout tenant and employee turnover

Specifications: StandardDoor Prep:

• Cross Bore 2-1/8
• Edge Bore 1
• Latch Face 1 x 2-1/4

Door Thickness:

• 1 3/4

Cylinder:

• 2 SmartKey Security cylinders: 1 standard Kwikset for users, 1 unique patented keyway for 1-Key Control

Faceplate:

• 1 x 2-1/4

Strike:

• 1 1/4 x 3-5/8

Bolt:

• 1 throw

ANSI/BHMA:

• A156.5 Grade 2

ADA:

• Interior turn piece meets 4.13.9 ADA

UL:

• Meets UL 3 hour fire rating for UL function.
• UL Ref# R10923

Functions: :

• Deadbolt operated by key outside and thumb turn inside.

817 UL Key Control Deadbolt:

• Deadbolt operated by key outside and thumb turn inside.

Finishes:

• 3 - Polished Brass
• 5 - Antique Brass
• 11P - Venetian Bronze
• 15 - Satin Nickel
• 26D - Brushed Chrome

This product contains 2 cylinders per lock and is typically keyed alike in quantities of 1.
