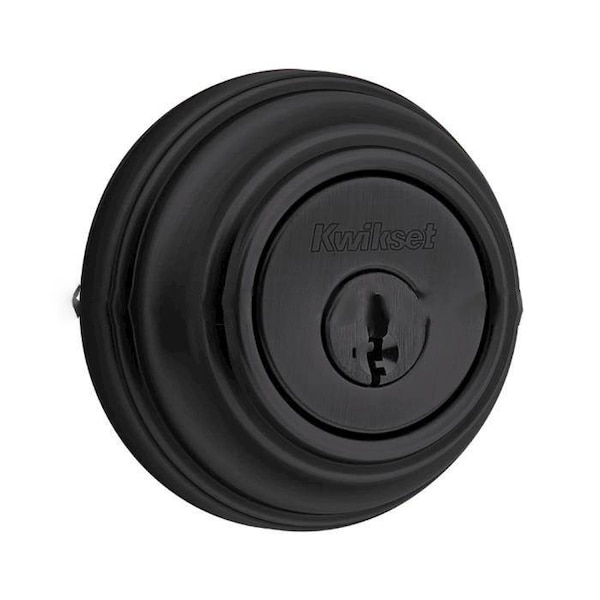

985 Double Cylinder Deadbolt

SmartKey with Round Corner Adjustable Latch and Round Corner Strike in Iron Black
980 DeadboltFeaturing SmartKeyKwiksets timeless 980 deadbolt is both tough and attractive. With a variety of finishes, this deadbolt can be paired with an assortment of knobs, levers or handles.Features:

• Featuring SmartKey Security
• ANSI/BHMA Grade A - Highest Residential Security, Durability and Finish
• Easy to Install

Specifications: Door Prep:

• 980, 985:
  • Crossbore 2 1/8 or 1 1/2
  • Edge Bore 1
• 982, 984:
  • Crossbore 2 1/8
  • Edge Bore 1

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 - 1 3/4 Doors standard
• 1 7/8 - 2 1/4 optional

Cylinder:

• SmartKey Security or Pin & Tumbler

Faceplates:

• 1 x 2 1/4 Specify round corner, square corner or drive-in

Strikes:

• Standard: Grade 2, 1 1/4 x 3 5/8 Specify round corner or square corner. For Grade 1 order 5278 Strike option and Ultra Strike Door Jamb Brace. Other options available.

Bolt:

• 1 Throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Grade A

ADA:

• Interior turn pieces are in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA.

UL:

• Meets UL 3 hour fire rating for 982 and 984 Optional UL* 1/3 hour fire rating for all functions

Functions: 980/982UL Single Cylinder:

• Deadbolt operated by key outside and thumbturn inside.

985/984UL Double Cylinder:

• Deadbolt operated by key both sides.

Finishes:

• Polished Brass - L03/3
• Antique Brass - 5
• Venetian Bronze - 11P
• Satin Nickle - 15
• Matte Black - 514

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
