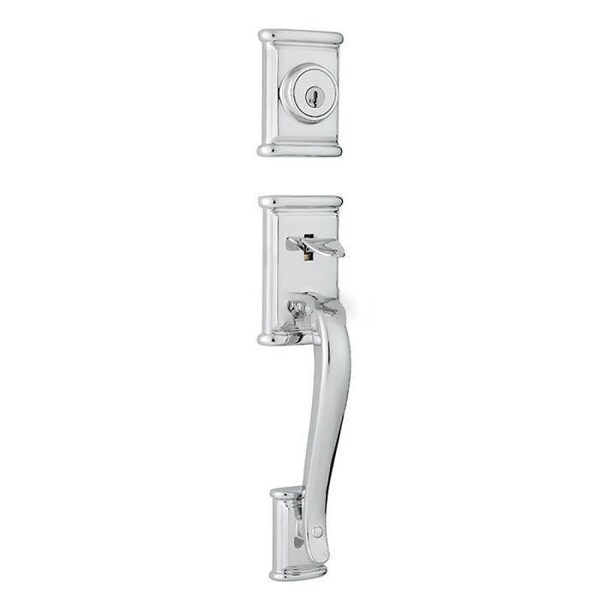

Ashfield Exterior Double Cylinder Handleset Trim

SmartKey with Round Corner Adjustable Latch and Round Corner Strike in Polished Chrome
Ashfield HandlesetFeaturing SmartKeyStylish and timeless, Ashfield's vintage inspired design brings together time-honored country traditions.Features:

• Features New Advanced SmartKey Security
• Handleset Deadbolt has ANSI/BHMA Grade 1 Certified Security

Specifications: Door Prep:

• Cross Bore 2 1/8
• Edge Bore 1
• Latch Face 1 x 2 1/4

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/4 Standard
• Thick door service part available for up to 2 1/4

Faceplates:

• 1 x 2 1/4
• Specify square, round, or drive in

Strikes:

• Deadbolt:
  • 1 1/4 x 3 5/8
  • Specify square, round, or drive in
• Handle:
  • 2 1/4 full lip
  • Specify square, round, or drive in
  • Other options available

Bolt:

• Deadbolt:
  • 1 throw
• Handle:
  • 1/2 throw

Cylinder:

• SmartKeySecurity or Pin & Tumbler

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Deadbolt is Grade 1 Certified

UL:

• Optional 20 minute UL fire rating available except for 819 function

ADA:

• N/A

Functions: Handleset Single-Cylinder:

• Exterior only, Latch bolt operated by thumb piece outside. Deadbolt operated by key outside.
• 818 ADH SMT

Handleset Dummy:

• Exterior only, Handle acts as pull only. For inactive leaf or double doors. No Operation.
• 819 ADH

Handle with Lever:

• Latch bolt operated by thumb piece outside and lever inside. No Deadbolt.
• 815 ADH x ADL
• Available with Halifax ADL lever

InteriorPack Single-Cylinder:

• Interior only, Latch bolt operated by lever inside. Deadbolt operated by thumb turn inside.
• 971___SMT
• Indicate interior lever style

Interior Pack Dummy:

• Interior only, Lever acts as a pull only. For inactive leaf or double doors. No operation.
• 973___
• Indicate interior lever style

Finishes:

• Polished Brass LO3
