Brooklane Lever Interior Single Cylinder Handleset Trim

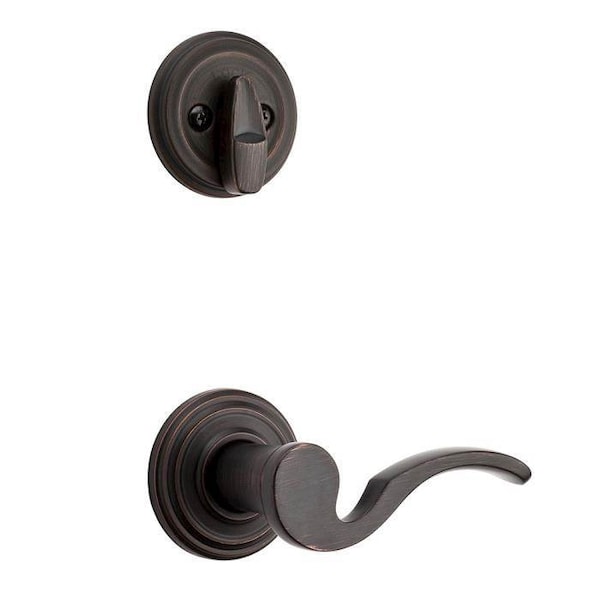

Brooklane Lever Left Hand Interior Single Cylinder Handleset Trim in Venetian Bronze
Brooklane LeverSignature SeriesGreat hardware can transform the look of your home. With a variety of styles functions and finishes, Kwikset's levers are sure to define your decor from the moment someone walks into your home.Specifications: Door Prep:

• Cross Bore 2-1/8
• Edge Bore 1
• Edge Bore 1

Backset:

• Adjustable 2-3/8 or 2-3/4

Door Thickness:

• 1-3/8 1-3/4 doors standard
• 2-1/4 doors optional on 720 and 740 models

Cylinder:

• SmartKey Security or Pin & Tumbler

Rose:

• Specify round or square rose - HFL, LSL, MRL, SYL, MIL, VDL

Faceplate:

• 1 x 2-1/4
• Specify round corner, square corner or drive-in

Strikes:

• 2-1/4 full lip. Specificy round corner or square corner
• Other options available

Bolt:

• 1/2 throw

Door Handing:

• Specify handing only with inactive levers

ANSI/BHMA:

• Grade 2 Certified

ADA:

• Families of MRL, SYL, LSL, MIL, HFL in Functions Passage, Privacy and Entry are in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA.

UL:

• Meets UL 3 hour fire rating for 725, 735, 745, 746, 749, 755
• Optional UL* 1/3 hour fire rating for all functions

Finishes:

• Venetian Bronze
• Satin Nickel
• Antique Nickel
