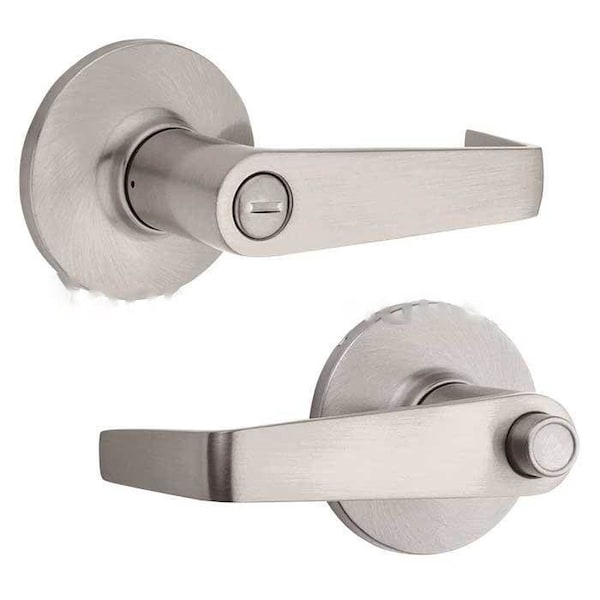

Carson UL Privacy Lever

with Round Corner Adjustable Latch and Round Corner Strike in Satin Nickel
Carson LeverLight CommercialOur light commercial door locks and lever products are ANSI/BHMA certified and meet UL fire ratings and ADA requirements.Specifications: ANSI/BHMA:

• Grade 3 Certified

Door Prep:

• Crossbore 2-1/8
• Edge Bore 1

Backset:

• Adjustable to 2-3/8 or 2-3/4

Door Thickness:

• 1-3/8 1-3/4 doors standard

Cylinder:

• SmartKey Security or Pin & Tumbler

Latch:

• Adjustable to 2-3/8 or 2-3/4
• Specify round corner or square corner, WFL

Strikes:

• 2-1/4 full lip UL
• Specify round corner or square corner
• Other options include 2-3/4 T-Strike and 4-7/8 ASA

Bolt:

• 1/2 throw

Door Handing:

• Reversible for right or left-hand doors

ADA:

• Lever options are in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA

UL:

• Meets UL 3 hour fire rating for all functions

Interior Locking:

• Push button for Kingston & Carson
• Turn button for Interconnect

Functions: Passage/Hall/Closet:

• Both levers always free.

Privacy/Bed/Bath:

• Both levers locked or unlocked by ADA turn button inside. Outside lever unlocked by emergency key.

Entry:

• Both levers locked or unlocked by key outside or ADA turn button inside.

Entry, Free Interior:

• Outside locked or unlocked by key outside or turn button inside. Inside always free.

Storeroom/Vestibule:

• Outside unlocked only while key is turned. Inside always free.

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.

Finishes:

• Venetian Bronze
• Polished Brass
• Satin Nickel
• Satin Chrome
