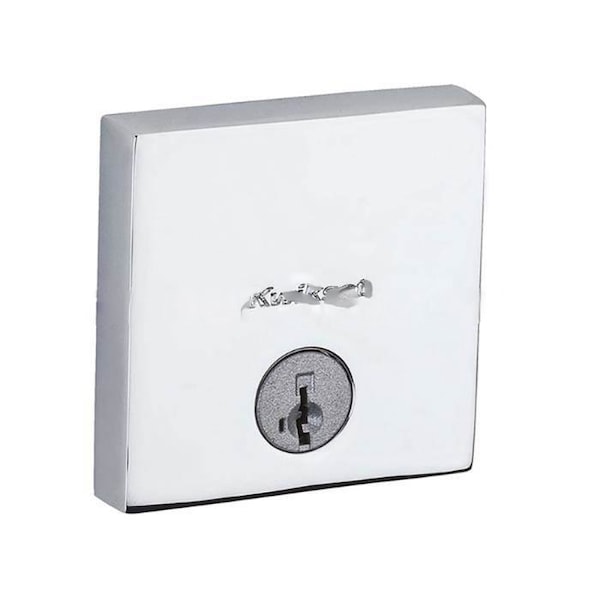

Downtown Single Cylinder Deadbolt

SmartKey with Round Corner Adjustable Latch and Round Corner Strike in Polished Chrome
Downtown DeadboltsSignature SeriesThe latest in contemporary design, these deadbolts are the first of their kind, featuring a half-inch projection off the door and the latest version of Kwikset patented SmartKey Security.Features:

• 50% Less Protrusion than Standard Deadbolts
• Highest Residential Security Rating: Grade 1
• Featuring SmartKey Security
• Perfectly match Kwiksets contemporary product portfolio

Specifications: Door Prep:

• 2 1/8 Diameter face hole
• 1 Diameter latch hole

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 - 1 3/4 Doors standard.
• Thick door service part available for up to 2 1/4

Cylinder:

• SmartKey Security

Faceplates:

• 1 x 2 1/4
• Specify round corner, square corner or drive-in

Strikes:

• 1 x 2 1/4 Square or round corner

Bolt:

• 1 Throw

Door Handing:

• Reversible for right or left-handed doors

ANSI/BHMA:

• Grade 1 Certified

UL:

• 20 minute fire rating available upon request

Rose:

• Specify round or square

Functions: 258 Single Cylinder:

• Deadbolt operated by key outside and thumb turn inside.

Finishes:

• Matte Black - 514
• Venetian Bronze - 11P
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
