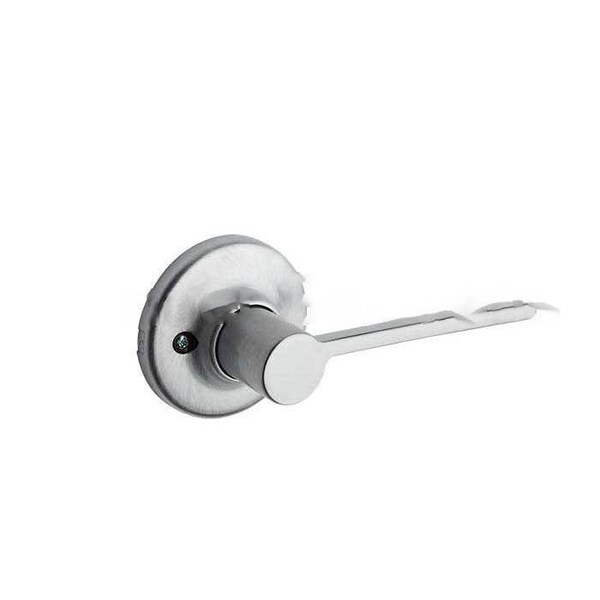

Ladera Half Dummy Lever

Right Hand in Satin Chrome
Ladera LeverFeaturing SmartKeySimple and understated, the Ladera lever will surely delight. The linear and unadorned look of the Ladera lever makes it an excellent choice for a transitional or contemporary themed dcor.Features:

• Reversible lever fits both left and right-hand doors
• Available with square or round rose
• ANSI/BHMA Grade 3 Certified

Specifications: Door Prep:

• 2-1/8 diameter face hole
• & 1diameter latch hole

Backset:

• Adjustable 2-3/8 or 2-3/4

Door Thickness:

• 1-3/8 - 1-3/4 Doors standard. 2 1/4 doors optional on 200 and 405 functions only

Cylinder:

• SmartKey Security or traditional 5-Pin pin & tumbler

Faceplates:

• 1 x 2-1/4 Specify round corner, square corner or drive-in

Strikes:

• 2-1/4 Full lip round corner strike. Other options available

Bolt:

• 1/2 Throw

Door Handing:

• Reversible for passage, privacy or entry. Specify handing only with inactive levers

ANSI/BHMA:

• Grade 3
• all functions except 488

ADA:

• Functions 200 and 420 are in compliance with the American National Standards Institute ANSI A117.1 and the Americans with Disabilities Act ADA

Functions: Passage/Hall/Closet:

• Both levers always free 200 LRL

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key 300 LRL

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton inside 405 LRL SMT

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation 488 LRL

Finishes:

• Venetian Bronze 11P*
• Satin Nickel 15*
• MatteBlack 514*
• Polished Chrome 26
• Satin Chrome 26D
• *Microban Antimicrobial Technology
• Matte Black finish available in square rose only
