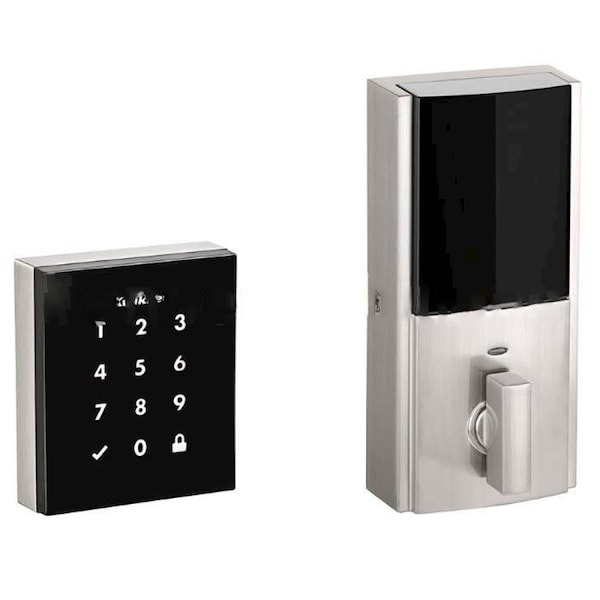

Obsidian Touchscreen Electronic Deadbolt

with Home Connect in Satin Nickel
ObsidianTouchscreen Electronic DeadboltThis style-forward lock is the future of door hardware. Named after the volcanic rock, Obsidian is a visually striking touchscreen that eliminates traditional keyways and opts for a low profile, contemporary design to deliver a stylish, modern smart lock that is secure, innovative and convenient.Features:

• Sleek, low-profile design with a glass-like surface
• Keyless Convenience - Enter your home with user codes instead of having to carry keys
• One-Touch Locking Dedicated button to easily lock your door
• Advanced Touchscreen is ultra-responsive to touch for instant screen display and fast usercode entry
• SecureScreen Patented technology to help prevent code detection from fingerprints on the touchscreen
• Up to 30 customizable user codes for increased security
• Mastercode provides improved user access code management
• Alarm sounds after 3 incorrect codes are consecutively entered and the screen temporarily locks out
• Keywayless entry - no more keys to hide and no keyway to pick or bump
• Tamper-resistant interior cover prevents unauthorized access to programming buttons
• Audible beep and visual flash when batteries are low
• Use a 9V battery as backup power in case the batteries run out
• Z-Wave Plus Certified with the Z-Wave 500 chipset
• Extended wireless range and superior 128-bit wireless encryption

Easy Installation:

• Installs in minutes with only a screwdriver
• Fits all standard doors
• No new screw holes required
• No hand wiring needed

Innovation Security:

• BHMA Grade 2 Certified
• 128-bit Advanced Encryption Standard AES communication
• SecureScreen - patented security feature
• Mastercode feature
• 16 user access code capacity

Specifications: Function:

• Single? Cylinder ?Deadbolt

Door Prep:

• 1 1/2 and 2 1/8 diameter face hole and 1 diameter latch hole

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 - 2

Faceplates:

• 1 x 2 1/4 round corner standard

Strikes:

• Round corner
