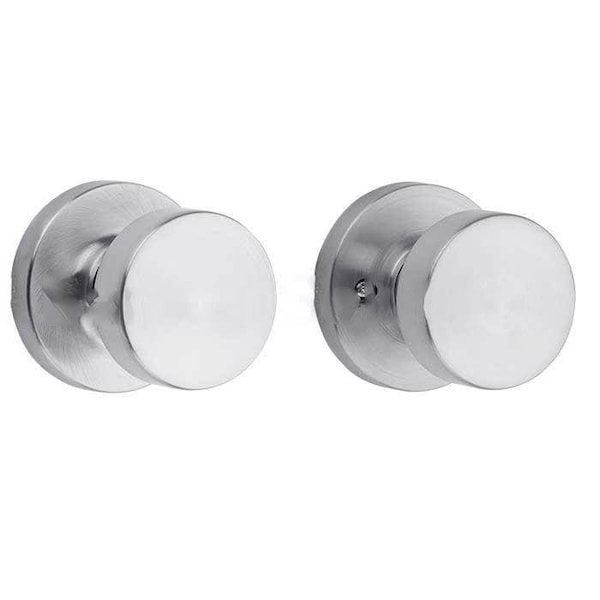

Pismo Passage Knob

with Round Rose, 6AL Latch and Round Corner Strike in Satin Chrome
Pismo KnobSignature SeriesPismo has an idealistic, simplified look. With defined lines and a variety of finishes, you can seamlessly upgrade to a contemporary style. Pismo can feature a round or square rose, so you can select the look you want for your home.Features:

• Featuring SmartKey Security
• ANSI/BHMA Grade A - Highest Residential Security,Durability and Finish
• New Contemporary Design
• Easy to Install

Specifications: Door Prep:

• Cross Bore 2 1/8
• Edge Bore 1
• Latch Face 1 x 2 1/4

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 - 1 3/4 Doors standard
• Thick door service part available for up to 2 1/4

Cylinder:

• SmartKey Security

Faceplates:

• 1 x 2 1/4 Specify round corner, square corner or drive-in

Strikes:

• 1 x 2 1/4 full lip
• Specify squareor round

Bolt:

• 1/2 Throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Grade A Certified: Finish/Durability/Security

UL:

• Optional 20 Minute UL fire rating available, except inactive functions.3hr UL rating available for passage function

ADA:

• N/A

Finishes:

• Venetian Bronze - 11P
• Satin Nickel - 15
• Polished Chrome - 26
• Satin Chrome - 26D
• Matte Black - 514
