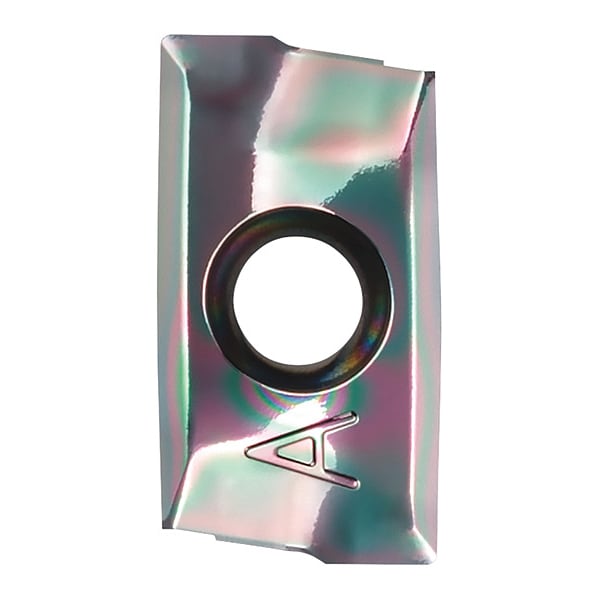

Kyocera Milling Insert, Parallelogram, BDGT 1704 BDGT170408FRJAPDL025 - main

Milling Insert, Parallelogram, BDGT 1704

  • Mfr # BDGT170408FRJAPDL025

  • Zoro # G9736397

product price:  $32.19
/ea
Sold in multiples of 10 for $321.90

Key Features

Insert Style
BDGT
Insert Size
170408
Corner Radius
0.80mm
ISO Number
BDGT170408FR-JA
Mounting Hole Dia.
4.40mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDGT170408FRJAPDL025
Zoro #
G9736397
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
170408
Corner Radius
0.80mm
Mounting Hole Dia.
4.40mm
Thickness
4.90mm
Width
9.60mm
Through Hole Inside Dia.
4.40mm
Cutting Edge Length
17.00mm

Details

Item
Parallelogram Milling Insert
Insert Style
BDGT
ISO Number
BDGT170408FR-JA
Rake
Positive
Chip-Breaker
Yes
Cutting Direction
Right Hand
Features
Hydrogen-Free DLC Coating for High Hardness Close to that of Diamond
Number of Cutting Edges
2
Primary Material Application ISO Code
N
For Toolholder
MEC...-17
Insert Holding Type
Screw
Chip-Breaker Code
FR-JA
Clearance Angle
18 Degrees
Measurement System
Metric
ANSI Code
BDGT170408FRJA
Finish - Machining
DLC
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Hole Type
Countersunk Hole
Material - Machining
Carbide
Cutting Application
Facing, Helical Milling, Shouldering, Slotting
Cutting Edge
Sharp Edge
Shape
Parallelogram
Manufacturer Grade
PDL025
Included Angle
82 Degrees

Description

Parallelogram Milling Insert, Positive, BDGT170408FRJA, FR-JA, 18 Degrees
