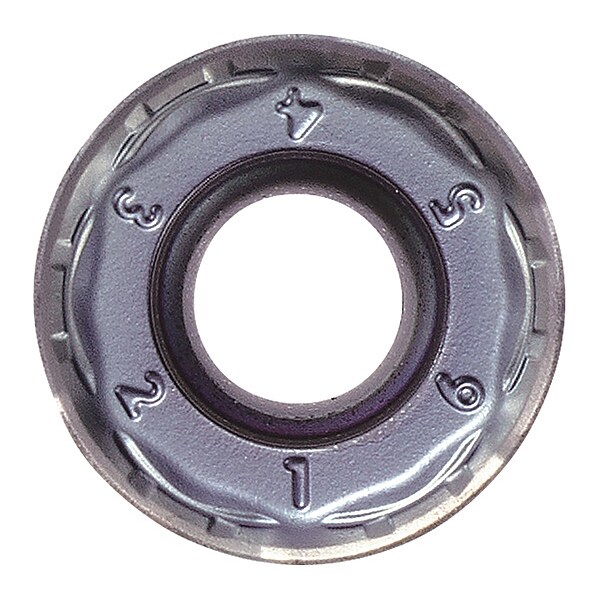

Milling Insert, Round, RPGT 1204M0ERGM P

Name: Milling Insert, Round, RPGT 1204M0ERGM P
Brand: Kyocera
SKU: G8278489
Price: 203.50 USD
Availability: InStock

20.35

/ea

Sold in multiples of 10 for $203.50

Insert Style

RPGT

Insert Size

1204

Inscribed Circle

12.00mm

Mounting Hole Dia.

4.60mm

Cutting Direction

Right Hand

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Insert Size: 1204
Mounting Hole Dia.: 4.60mm
Thickness: 4.76mm
Through Hole Inside Dia.: 4.60mm
Fits Chest Size: For Carbon/Alloy, Free-Cutting and Mold Steel, Wear Resistance and High Oxidation Resistance

Item: Parallelogram Milling Insert
Insert Style: RPGT
Inscribed Circle: 12.00mm
Cutting Direction: Right Hand
Rake: Positive
Chip-Breaker: Yes
ISO Number: RPGT1204M0ER-GM
Features: For Carbon/Alloy, Free-Cutting and Mold Steel, Wear Resistance and High Oxidation Resistance
Primary Material Application: Steel
Secondary Material Application ISO Code: M
Measurement System: Metric
Chip-Breaker Code: ER-GM
ANSI Code: RPGT1204M0ERGM
Primary Material Application ISO Code: P
Material - Machining: Carbide
Clearance Angle: 11 Degrees
Cutting Application: Facing, Grooving, Plunging, Pocketing, Radius Milling, Shouldering
Hole Type: Countersunk Hole
Finish - Machining: Megacoat Nano
Secondary Material Application: Austenitic Stainless Steel
Insert Holding Type: Screw
For Toolholder: MRX...-12
Shape: Round
Manufacturer Grade: PR1525
Coating Process: PVD
Cutting Edge: Honed

Parallelogram Milling Insert, Inscribed Circle 12.00mm, Positive, RPGT1204M0ERGM, ER-GM, 11 Degrees
