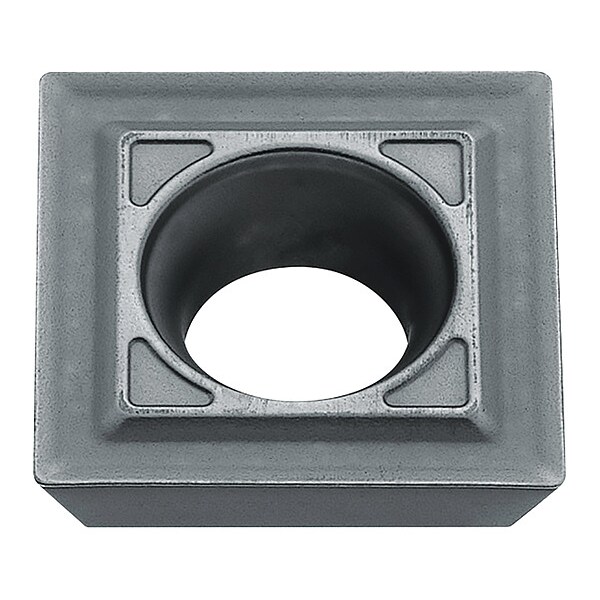

Milling Insert, Square, SEMT 421C KW10 G

Name: Milling Insert, Square, SEMT 421C KW10 G
Brand: Kyocera
SKU: G8276809
Price: 182.50 USD
Availability: InStock

$18.25

/ea

Sold in multiples of 10 for $182.50

Insert Style

SEMT

Insert Size

421

Corner Radius

1/64 in

Rake

Positive

Cutting Direction

Neutral

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Item: Parallelogram Milling Insert
Insert Style: SEMT
Rake: Positive
Cutting Direction: Neutral
Inscribed Circle: 1/2 in
ISO Number: SEMT120304C
Chip-Breaker: Yes
Number of Cutting Edges: 4
Included Angle: 90 Degrees
Secondary Material Application: Cast Iron
Cutting Edge: Low Cutting Force
Material - Machining: Carbide
Cutting Application: Back Chamfering, Chamfering, Countersinking, V-Shape Slotting
ANSI Code: SEMT421C
Primary Material Application: Aluminum, Brass, Bronze, Copper, Non-Ferrous
Manufacturer Grade: KW10
Measurement System: Fractional Inch
For Toolholder: MCSE106, MCSE108-30D, MCSE108-60D, MCSE110-30D, MCSE115, MCSE120-60D, MCSE227, MCSE336
Primary Material Application ISO Code: N
Chip-Breaker Code: C
Insert Holding Type: Screw
Hole Type: Countersunk Hole
Shape: Square
Finish - Machining: Bright (Uncoated)
Secondary Material Application ISO Code: K
Clearance Angle: 20 Degrees

Parallelogram Milling Insert, Inscribed Circle 1/2 in, Positive, SEMT421C, C, 20 Degrees
