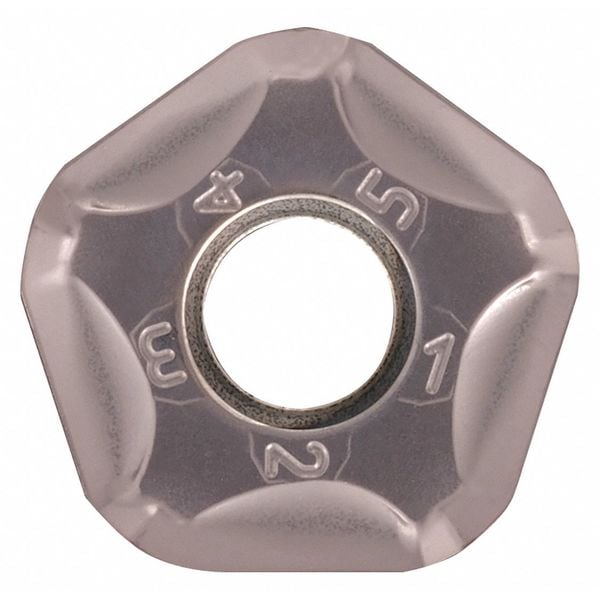

Kyocera Pentagon PNMU Carbide PNMU1205ANERGMPR1210 - main

Pentagon PNMU Carbide

  • Mfr # PNMU1205ANERGMPR1210

  • Zoro # G6287762

product price: $18.85
/ea
Sold in multiples of 10 for $188.50

Key Features

Insert Style
PNMU
Insert Shape
Pentagon
Insert Size
1205
Insert Material
Carbide
Corner Radius
0.0790 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PNMU1205ANERGMPR1210
Zoro #
G6287762
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
1205
Corner Radius
0.0790 in
Mounting Hole Dia.
0.2440 in
Insert Thickness
0.219"
Cutting Edge Length
12.00mm
Through Hole Inside Dia.
0.2440 in
Thickness
0.219 in

Details

Item
Pentagon Milling Insert
Insert Style
PNMU
Insert Shape
Pentagon
Insert Material
Carbide
ANSI Number
PNMU1205ANERGMPR1210
Super Alloy (S) Compatibility
Yes
Grade
PR1210
Chip-Breaker
Yes
ISO Number
PNMU1205ANERGMPR1210
Coating
Megacoat
For Use With
MFPN45050R-S32-3T, MFPN45063R-4T-M, MFPN45063R-5T-M, MFPN45063R-6T-M, MFPN45063R-S32-4T, MFPN45080R-5T, MFPN45080R-5T-M, MFPN45080R-6T, MFPN45080R-6T-M, MFPN45080R-8T, MFPN45080R-8T-M, MFPN45080R-S32-5T, MFPN4510000R-12T, MFPN4510000R-16T, MFPN4510000R-20T, MFPN45100R-10T, MFPN45100R-10T-M, MFPN45100R-6T, MFPN45100R-6T-M, MFPN45100R-8T, MFPN45100R-8T-M, MFPN45125R-10T, MFPN45125R-10T-M, MFPN45125R-13T, MFPN45125R-13T-M, MFPN45125R-7T, MFPN45125R-7T-M, MFPN45160R-12T, MFPN45160R-12T-M, MFPN45160R-16T, MFPN45160R-16T-M, MFPN45160R-8T, MFPN45160R-8T-M, MFPN452000R-4T, MFPN452000R-W125-3T, MFPN45200R-10T, MFPN45200R-10T-M, MFPN45200R-14T, MFPN45200R-14T-M, MFPN45200R-18T, MFPN45200R-18T-M, MFPN452500R-5T, MFPN452500R-6T, MFPN452500R-W125-4T, MFPN45250R-12T, MFPN45250R-12T-M, MFPN45250R-16T, MFPN45250R-16T-M, MFPN45250R-20T, MFPN45250R-20T-M, MFPN453000R-5T, MFPN453000R-6T, MFPN453000R-8T, MFPN453000R-W125-5T, MFPN45315R-14T-M, MFPN454000R-10T, MFPN454000R-6T, MFPN454000R-8T, MFPN455000R-10T, MFPN455000R-13T, MFPN455000R-7T, MFPN456000R-12T, MFPN456000R-16T, MFPN456000R-8T, MFPN458000R-10T, MFPN458000R-14T, MFPN458000R-18T, Mfr. No. MFPN452500R-4T
No. of Edges
10
Stainless (M) Compatibility
No
Cutting Direction
Right Hand
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Inscribed Circle
0.7040 in
Insert Application
Milling
Lead Angle
90 Degrees
Rake
Positive
Steel (P) Compatibility
No
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Super Alloy (S)
Mounting Style
Screw
Series
MFPN
Primary Material Application
Cast Iron
Measurement System
Metric
For Toolholder
MFPN45050R-S32-3T, MFPN45063R-S32-4T, MFPN45080R-S32-5T, MFPN452000R-W125-3T, MFPN452500R-W125-4T, MFPN453000R-W125-5T
Coating Process
CVD
Shape
Pentagon
Number of Cutting Edges
10
Manufacturer Grade
PR1210
Insert Holding Type
Screw
Chip-Breaker Code
GM
Material - Machining
Carbide
Secondary Material Application ISO Code
K, S
Features
Wear and Oxidation Resistance
Clearance Angle
0 Degrees
ANSI Code
PNMU1205ANERGMPR1210
Secondary Material Application
Cast Iron, Titanium
Cutting Application
Milling
Finish - Machining
Megacoat Nano
Primary Material Application ISO Code
K

Description

Pentagon Milling Insert, Inscribed Circle 0.7040 in, Rake Positive
