  11. Threading Insert, 16 ERAG55TF PR1115 Gra

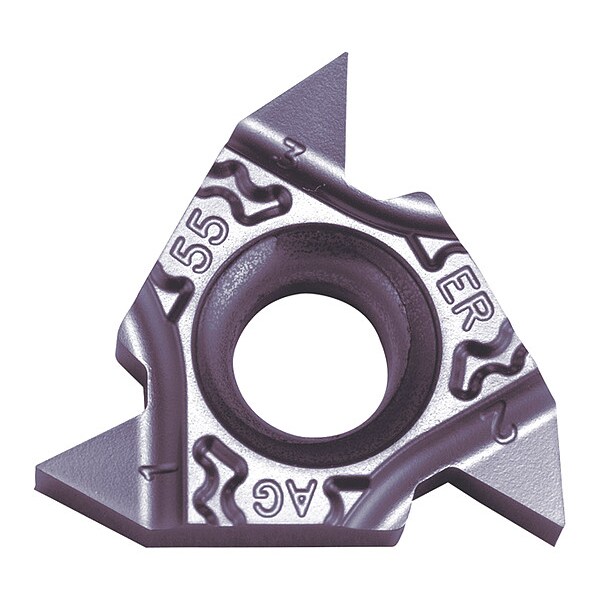

Kyocera Threading Insert, 16 ERAG55TF PR1115 Gra 16ERAG55TFPR1115 - main

Threading Insert, 16 ERAG55TF PR1115 Gra

  • Mfr # 16ERAG55TFPR1115

  • Zoro # G7963516

product price: $17.05
/ea
Sold in multiples of 5 for $85.25

Key Features

Chip-Breaker
Yes
Cutting Direction
Right Hand
Inscribed Circle
3/8 in
Insert Type
16ER
Thickness
0.1450"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16ERAG55TFPR1115
Zoro #
G7963516
UPC #
-
Country of Origin
Japan

Dimensions

Thickness
0.1450"
Corner Radius
0.002 in
Insert Length
Clamp
Through Hole Inside Dia.
0.1570"

Details

Item
Indexable Thread Turning Insert
Chip-Breaker
Yes
Cutting Direction
Right Hand
Inscribed Circle
3/8 in
Insert Type
16ER
Max. Threads per Inch
8
Chip-Breaker Code
TF
Threading Location
External
Finish - Machining
TiAlN
Included Angle
55 Degrees
Insert Style
16ER
Number of Cutting Edges
3
Side-to-Cutting Tip
0.0630"
For Toolholder
KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16
Primary Material Application ISO Code
P
Thread Standard
Parallel Pipe (G, PF), Tapered Pipe (R, PT, BSPT), Whitworth
Coating Process
PVD
Material - Machining
Carbide
Manufacturer Grade
PR1115
ANSI Code
16ERAG55TF
Measurement System
Fractional Inch
Material Grade - Machining
Super Micrograin
Insert Holding Type
Clamp
Primary Material Application
Steel
Thread Profile Type
55 Degrees Partial

Description

Indexable Thread Turning Insert, 16, External, TF, Cutting Direction Right Hand, Parallel Pipe (G, PF), Tapered Pipe (R, PT, BSPT), Whitworth, Primary Material Application Steel, Inscribed Circle 55 Degrees , Max. Threads per Inch 8
