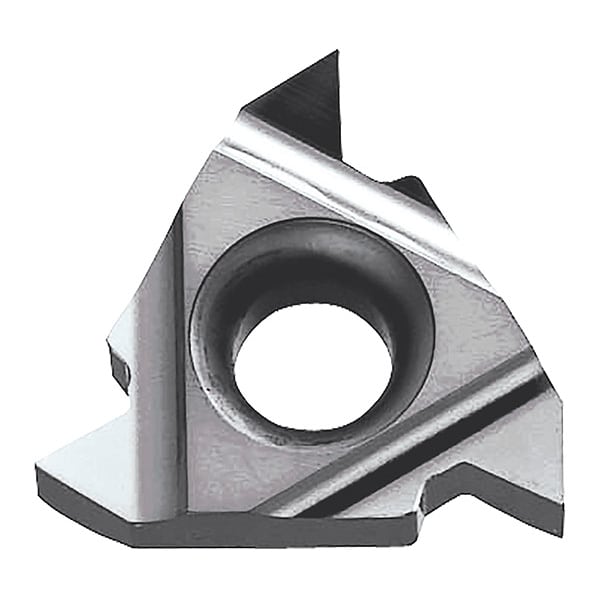

Threading Insert, 16 ERAG60 GW15 Grade U

Mfr # 16ERAG60GW15
Zoro # G9736449

34.39

Sold in multiples of 10 for $343.90

Key Features

Chip-Breaker

Cutting Direction

Right Hand

Inscribed Circle

60 Degrees

Insert Type

16ER

Thickness

0.1450"

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 16ERAG60GW15
Zoro #: G9736449
UPC #: -
Country of Origin: Multiple

Dimensions

Thickness: 0.1450"
Through Hole Inside Dia.: 0.1570"
Corner Radius: 0.0024 in
Insert Length: Clamp

Details

Item: Indexable Thread Turning Insert
Chip-Breaker: No
Cutting Direction: Right Hand
Inscribed Circle: 60 Degrees
Insert Type: 16ER
ANSI Code: 16ERAG60
Included Angle: 16ERAG60
Primary Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Non-Ferrous
Side-to-Cutting Tip: 0.0630"
Finish - Machining: Bright (Uncoated)
Insert Style: 16
Threading Location: External
Secondary Material Application ISO Code: S
Manufacturer Grade: GW15
Min. Thread Pitch: 8
Max. Threads per Inch: 48
Secondary Material Application: High-Temperature Alloys
Primary Material Application ISO Code: K10, N
Max. Thread Pitch: 3
Min. Thread per Inch: 0.5 mm
Thread Profile Type: 60 Degrees Partial
For Toolholder: KTNR12-3, KTNR1216JX-16F, KTNR16-3, KTNR1616H-16, KTNR1616JX-16F, KTNR2020H-16, KTNR2020JX-16F, KTNR2020K-16, KTNR2525M-16, KTNSR1010H-16, KTNSR1212K-16, KTNSR1616K-16, KTNSR2020K-16
Thread Standard: Metric/ISO; UN
Material - Machining: Carbide
Material Grade - Machining: WC-Co
Number of Cutting Edges: 3
Insert Holding Type: 3/8 in
Measurement System: Metric

Description

Indexable Thread Turning Insert, 16, External, Cutting Direction Right Hand, Metric/ISO; UN, Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Non-Ferrous, Inscribed Circle 60 Degrees , Max. Threads per Inch 48
