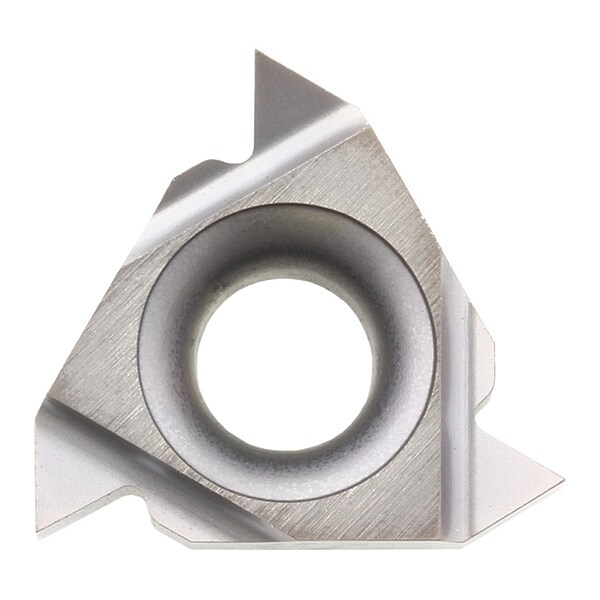

Threading Insert, 16 IRAG60 GW15 Grade U

Mfr # 16IRAG60GW15
Zoro # G7963227

36.99

Sold in multiples of 10 for $369.90

Key Features

Chip-Breaker

Cutting Direction

Right Hand

Insert Type

16IR

Inscribed Circle

60 Degrees

Thickness

0.1450"

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 16IRAG60GW15
Zoro #: G7963227
UPC #: -
Country of Origin: Japan

Dimensions

Thickness: 0.1450"
Through Hole Inside Dia.: 0.1570"
Corner Radius: 0.001 in
Insert Length: Clamp

Details

Item: Indexable Thread Turning Insert
Chip-Breaker: No
Cutting Direction: Right Hand
Insert Type: 16IR
Inscribed Circle: 60 Degrees
Max. Thread Pitch: 3
Measurement System: Metric
Min. Thread per Inch: 0.5 mm
Included Angle: 16IRAG60
Thread Profile Type: 60 Degrees Partial
Manufacturer Grade: GW15
Side-to-Cutting Tip: 0.0670"
Threading Location: Internal
Primary Material Application: Aluminum, Brass, Bronze, Cast Iron, Copper, Non-Ferrous
Insert Holding Type: 3/8 in
Number of Cutting Edges: 3
Material - Machining: Carbide
Max. Threads per Inch: 48
Secondary Material Application: High-Temperature Alloys
For Toolholder: CINR3025S-16, CINR3732S-16, S10M-SINR-3, S12X-SINR-3, SINR1616S-16, SINR2016S-16, SINR2420S-16
Insert Style: 16
Finish - Machining: Bright (Uncoated)
ANSI Code: 16IRAG60
Primary Material Application ISO Code: K10, N
Thread Standard: Metric/ISO; UN
Material Grade - Machining: WC-Co
Secondary Material Application ISO Code: S
Min. Thread Pitch: 8

Description

Indexable Thread Turning Insert, 16, Internal, Cutting Direction Right Hand, Metric/ISO; UN, Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Non-Ferrous, Inscribed Circle 60 Degrees , Max. Threads per Inch 48
