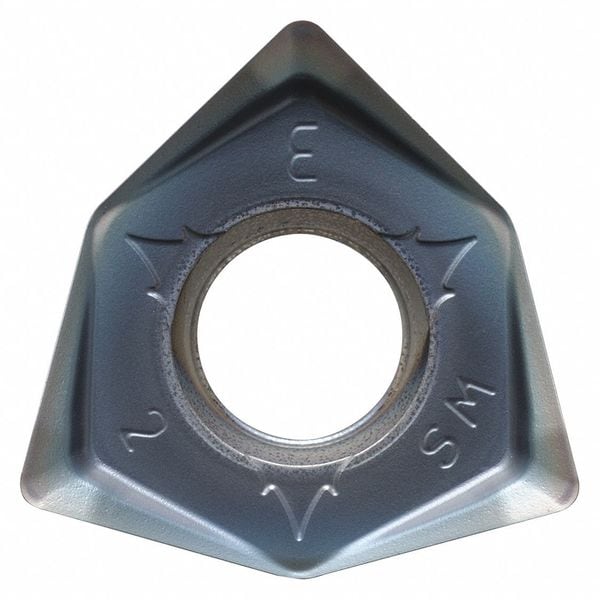

Kyocera Trigon WNMU Carbide WNMU080608ENSMCA6535 - main

Trigon WNMU Carbide

  • Mfr # WNMU080608ENSMCA6535

  • Zoro # G6267173

product price: $16.25
/ea
Sold in multiples of 10 for $162.50

Key Features

Insert Style
WNMU
Insert Shape
Trigon
Insert Size
080608
Insert Material
Carbide
Corner Radius
0.0315 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMU080608ENSMCA6535
Zoro #
G6267173
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
080608
Corner Radius
0.0315 in
Mounting Hole Dia.
0.2440 in
Insert Thickness
0.262"
Width
0.5520 in
Cutting Edge Length
8.00mm
Thickness
0.262 in
Through Hole Inside Dia.
0.2440 in

Details

Item
Trigon Milling Insert
Insert Style
WNMU
Insert Shape
Trigon
Insert Material
Carbide
Rake
Positive
Lead Angle
90 Degrees
No. of Edges
6
ISO Number
WNMU080608ENSMCA6535
Mounting Style
Screw
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Coating
TiCN+Al2O3+TiN
Hardened (H) Compatibility
No
Insert Application
Milling
ANSI Number
WNMU080608ENSMCA6535
Workpiece Compatibility
Super Alloy (S)
Grade
CA6535
Chip-Breaker
Yes
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
Yes
Inscribed Circle
0.5520 in
Stainless (M) Compatibility
No
For Use With
Mfr. No. MFWN902500R-3T, MFWN90050R-S32-3T, MFWN90063R-3T-M, MFWN90063R-4T-M, MFWN90063R-5T-M, MFWN90063R-S32-4T, MFWN90080R-4T, MFWN90080R-4T-M, MFWN90080R-5T, MFWN90080R-5T-M, MFWN90080R-7T, MFWN90080R-7T-M, MFWN90080R-S32-5T, MFWN9010000R-12T, MFWN9010000R-14T, MFWN9010000R-18T, MFWN90100R-5T, MFWN90100R-5T-M, MFWN90100R-7T, MFWN90100R-7T-M, MFWN90100R-9T, MFWN90100R-9T-M, MFWN90125R-12T, MFWN90125R-12T-M, MFWN90125R-6T, MFWN90125R-6T-M, MFWN90125R-8T, MFWN90125R-8T-M, MFWN90160R-10T, MFWN90160R-10T-M, MFWN90160R-14T, MFWN90160R-14T-M, MFWN90160R-8T, MFWN90160R-8T-M, MFWN902000R-4T, MFWN902000R-W125-3T, MFWN90200R-10T, MFWN90200R-10T-M, MFWN90200R-12T, MFWN90200R-12T-M, MFWN90200R-16T, MFWN90200R-16T-M, MFWN902500R-4T, MFWN902500R-5T, MFWN902500R-W125-4T, MFWN90250R-12T, MFWN90250R-12T-M, MFWN90250R-14T, MFWN90250R-14T-M, MFWN90250R-18T, MFWN90250R-18T-M, MFWN903000R-4T, MFWN903000R-5T, MFWN903000R-7T, MFWN903000R-W125-5T, MFWN904000R-5T, MFWN904000R-7T, MFWN904000R-9T, MFWN905000R-12T, MFWN905000R-6T, MFWN905000R-8T, MFWN906000R-10T, MFWN906000R-14T, MFWN906000R-8T, MFWN908000R-10T, MFWN908000R-12T, MFWN908000R-16T
Series
M-SIX (MFWN)
Clearance Angle
0 Degrees
Primary Material Application ISO Code
M, S
Cutting Application
Milling
Manufacturer Grade
CA6535
Coating Process
CVD
Primary Material Application
Nickel, Stainless Steel, Titanium
Measurement System
Metric
Number of Cutting Edges
6
For Toolholder
MFWN90050R-S32-3T, MFWN90063R-S32-4T, MFWN90080R-S32-5T, MFWN902000R-W125-3T, MFWN902500R-W125-4T, MFWN903000R-W125-5T
Material - Machining
Carbide
Shape
Trigon
Chip-Breaker Code
SM
Finish - Machining
TiCN+Al2O3+TiN
Features
High Heat and Wear Resistance
ANSI Code
WNMU080608ENGMCA6535
Insert Holding Type
Screw

Description

Trigon Milling Insert, Inscribed Circle 0.5520 in, Rake Positive
