  9. Digital Panel Meter, LCD, 7 to 14VDC

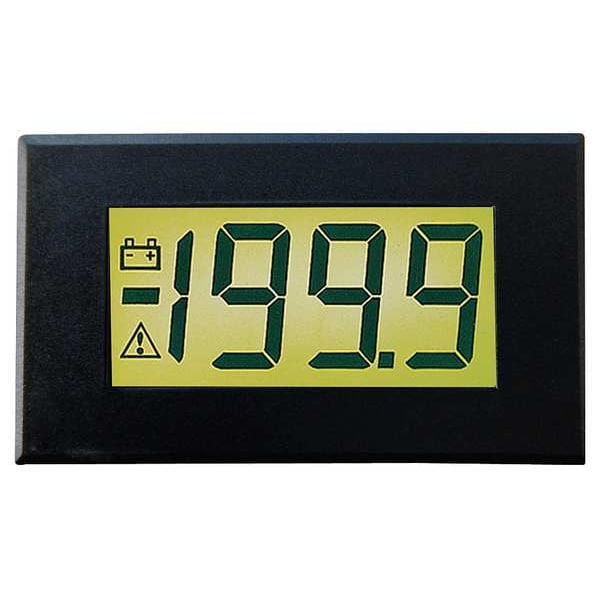

Lascar Digital Panel Meter, LCD, 7 to 14VDC DPM-950 - main

Digital Panel Meter, LCD, 7 to 14VDC

  • Mfr # DPM-950

  • Zoro # G8375507

product price: $90.99
/ea
Free Shipping & Returns

Key Features

Type
DC Voltage
Input Range
7 to 14V DC
Accuracy
0.1% of Reading +/-1 Count
Display Span
1999
Display
LCD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPM-950
Zoro #
G8375507
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Depth
1 in
Overall Height
2.99 in
Digit Height - Maximum
0.75 in
Cutout Width
1 19/32 in
Cutout Height
2 55/64 in
Overall Depth
1.73 in

Details

Item
Voltmeter
Type
DC Voltage
Input Range
7 to 14V DC
Accuracy
0.1% of Reading +/-1 Count
Display Span
1999
Display
LCD
Display Digits
4
Interface
IDC
Includes
Mounting and Pin Brackets
Power Required
7 to 14V DC
True RMS
No
Process Connection
No
Style
Panel
NEMA Rating
BS EN61010
Fits
72mm x 40mm DIN
Mounting
Panel Cutout
Use With
Mfr. No. BEZ 900-IP
Connector Type
Pin Terminal
Excitation
No
Standards
7 to 14V DC
Series
Panel
NEMA Enclosure Rating
Not Rated
Voltage Display - Maximum
199.9 mV DC
Terminal Connection Type
Pin
Digital Display Screen Type
LCD with Backlight
Product Type
Voltmeter
Voltage Display - Minimum
-199.9 mV DC
Number of Display Digits
3.5
Digital Display Screen Color
Black
Display Span - Minimum
-1,999
Includes Mounting Hardware
Included
DC Voltage Input - Maximum
200 mV DC
Display Features
High Contrast
DC Voltage Input - Minimum
-200 mV DC
Display Span - Maximum
1,999
Parameters Measured
DC Voltage

Description

Voltmeter, DC Voltage, Input Range 7 to 14V DC, Accuracy 0.1 Percent of Reading +/-1 Count, Display Span 1999, Display Digits 4, LCD Display, True RMS No, No Excitation, Use With Mfr. No. BEZ 900-IP, Fits 72mm x 40mm DIN Cutout, Connector Type Pin Terminal, Process Connection No, Power Required 7 to 14V DC, IDC Interface, BS EN61010 NEMA Rating, Depth 1 in, Mounting Panel Cutout, Style Panel, Includes Mounting and Pin Brackets, Manufacturers Warranty Length 1 yr
