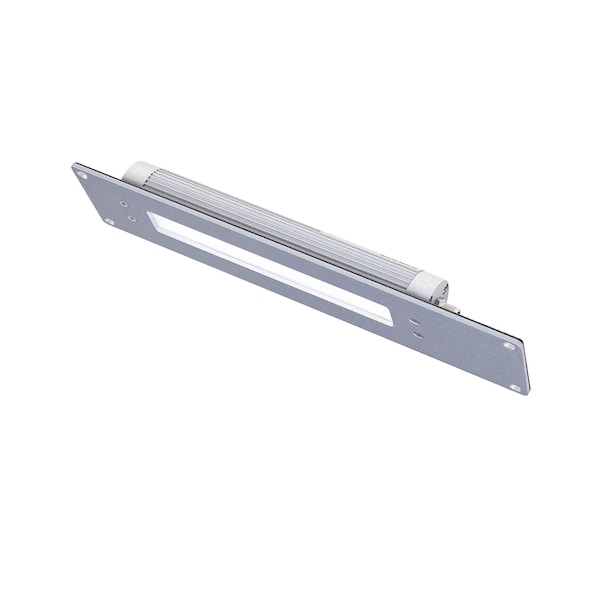

Recessed luminaire TUBELED 40 II integrated Power, 284 mm x 74 mm x 3 mm 11, 18'' x 2, 91'' x 0, 12''
Mfr # 151010-03
Zoro # G314643174
product price:Â
$
386.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~8 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
1266 lm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 151010-03
- Zoro #
- G314643174
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Nominal Size - Fixtures
- 32 mm x 74 mm (~1.26" x ~2.91"). aperture 3 mm (~0.12") built-up
- Length
- 284 mm (~11.18")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~8 W
- Dimmable
- Optional via accessories
- Color Temperature
- Daylight white (5200 - 5700K)
- Lumens
- 1266 lm
- Material
- Aluminum
- Type
- LED recessed light
- IP Rating
- IP67/IP69K
- Features
- Recessed LED Machine Light
- Rated Life
- Greater than 60.000 hr (L80/B10)
- Standards
- CE, UKCA, ETL Listed (5003529)
- Beam Angle
- 100°
- Class of Protection
- III
- Cover Material
- Safety glass, 4 mm (0,16")
- Cascadable
- No
- Color Rendering (Ra)
- >85
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Model
- TUBELED_40 II Integrated
- Connection
- M12 A-coded
- Glare Control
- Diffused safety glass
- Energy Efficiency
- ~155 lm/W
Description
LED machine light TUBELED_40 II Integrated, recessed luminaire, luminous flux optimized power version, Daylight white, Length: 284 mm 11,18'', 32 mm x 74 mm 1.26 x 2.91, aperture 3 mm 0.12 built-up, IP67/IP69K, oil-resistant, chip-proof, CNC suitableRecessed version of the proven machine luminaire TUBELED_40 II: oil-resistant as well as resistant to coolants and lubricants, high temperature resistance, shatterproof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the 1st choice for illuminating work areas in machines. For recessed shafts for original equipment or retrofitting.
