SIGNALED II RGB, 760 mm 29, 92''
Mfr # 111090-15
Zoro # G714643156
product price:Â
$
316.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC - 10% +7% (RGB)
Special Features
Signaling via flashing and/or colored light
Mounting Type
LED surface-mounted light
Color Temperature
RGB color space (at least 2563 colors)
Average Life
> 60.000 h (L80/B10)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 111090-15
- Zoro #
- G714643156
- UPC #
- -
- Country of Origin
- Germany
- Voltage
- 24V DC - 10% +7% (RGB)
- Special Features
- Signaling via flashing and/or colored light
- Mounting Type
- LED surface-mounted light
- Color Temperature
- RGB color space (at least 2563 colors)
- Average Life
- > 60.000 h (L80/B10)
- Standards
- CE, UKCA, ETL Listed (5003529)
- Tube Material
- Aluminum
- Dimmable
- No
- IP Rating
- IP54
- Beam Angle
- 120°
- Model
- SIGNALED II RGB
- Power Consumption Green
- ~7.9 W
- Power Consumption Blue
- ~7.9 W
- Operating Temperature
- -10 °C to +50 °C (14 °F to 122 °F)
- Mounting Accessories
- 2 pairs mounting holders (holder for swivel or planar mounting) in delivery scope
- Lamp Luminous Flux Blue
- 279 lm
- Cascadable
- No
- Lamp Luminous Flux Red
- 177 lm
- Class of Protection
- III
- Glare Control
- Opal White
- Cover Material
- polycarbonate, soft
- Connection
- M12 A-coded
- Lamp Luminous Flux Green
- 81 lm
- Power Consumption Red
- ~7.9 W
Description

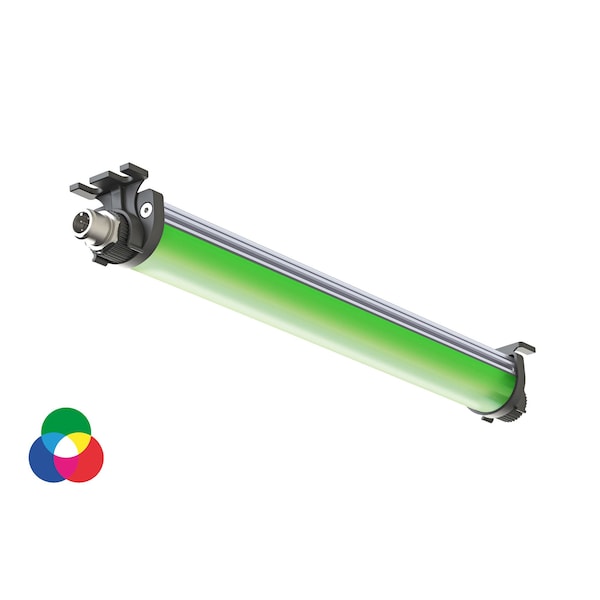

The SIGNALED II RGB, 760 mm 29,92'' is a versatile LED surface-mounted light with RGB LEDs, offering a wide color palette. Each LED color has a power of 7,9 W Red, 7,9 W Green, and 7,9 W Blue, and the luminous flux is 177 lm lm Red, 81 lm lm Green, and 279 lm lm Blue. With a beam angle of 120Deg, the light is evenly distributed.The connection is via a M12 A-coded connector with 24V DC - 10% +7% RGB. The luminaire is certified with protection rating IP54 and protection class III, and operates in a temperature range of -10 DegC -> +50 DegC 14 DegF -> 122 DegF. The lifespan is over > 60.000 h L80/B10. The housing is made of aluminum and the cover is made of polycarbonate, soft, with dimensions of 25 mm x 30 mm 0,98'' x 1,18'' x 760 mm 29,92'' and a weight of 500 g 18 oz gross weight 800 g 28 oz.The luminaire provides even, colorful light for visibility and safety and is suitable for machines and equipment without chip exposure and coolant, such as bending machines, punching machines, as well as conveyors, roller doors, and logistics workstations. The included brackets allow for fixed or movable installation.
