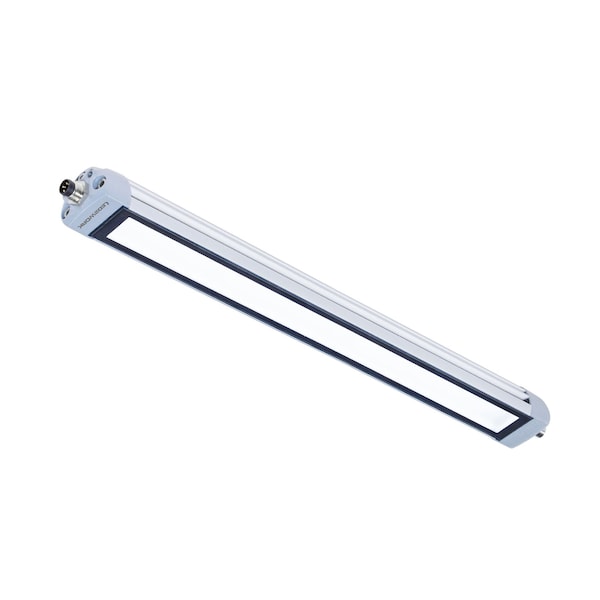

TUBELED 25, 205 mm 8, 07'', cascadable
Mfr # 154010-02
Zoro # G314643280
product price:Â $186.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~4.3 W
Lumens
667 lm
IP Rating
IP67
Dimmable
Optional via accessories
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 154010-02
- Zoro #
- G314643280
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 205 mm (~8.07")
- Size
- ~23 mm x ~28 mm (~0.91" x ~1.1")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~4.3 W
- Lumens
- 667 lm
- IP Rating
- IP67
- Dimmable
- Optional via accessories
- Tube Material
- Aluminum
- Mounting Type
- LED surface-mounted light for machines and systems
- Color Temperature
- Daylight white (5200 - 5700K)
- Special Features
- Very Slim And Bright, M8 Sensor Connector, Cascadable
- Average Life
- > 60.000 h (L80/B10)
- Standards
- CE, UKCA, ETL Listed (5003529)
- Glare Control
- Diffused Safety Glass
- Beam Angle
- 100°
- Cover Material
- Safety glass, 4 mm (0,16")
- Model
- TUBELED_25 cascadable
- Operating Temperature
- -30 °C to +55 °C (-22 °F to 131 °F)
- Color Rendering (Ra)
- >85
- Class of Protection
- III
- Cascadable
- Yes
- Connection
- M8 A-coded
- Energy Efficiency
- 155-lm/W
Description
TUBELED_25 cascadable, LED surface-mounted light for machines and systems, performance-optimized, daylight white 5200 - 5700K, only 23 mm x 28 mm 0,91'' x 1,1'' HxW, length 205 mm 8,07'', protection class IP67 - therefore dust and liquid-tightThe latest generation of surface-mounted LED lights for machines and systems: very slim, low profile and suitable for tight installation situations. Shatter-proof tempered glass, aluminum housing and the associated high degree of protection make this performance-optimized light the universal standard for illuminating work areas on CNC machines and automated systems - for original equipment or retrofitting.
