TUBELED 40 II ECO, 190 mm 7, 48''
Mfr # 118010-02
Zoro # G614643287
product price:Â $208.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~4 W
Lumens
668 lm
IP Rating
IP67/IP69K
Overall Length
190 mm (~7.48")
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118010-02
- Zoro #
- G614643287
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 190 mm (~7.48")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~4 W
- Lumens
- 668 lm
- IP Rating
- IP67/IP69K
- Tube Material
- Aluminum
- Mounting Type
- LED surface-mounted light for machines
- Standards
- CE, UKCA, ETL Listed (5003529)
- Color Temperature
- Daylight white (5200 - 5700K)
- Average Life
- > 60.000 h (L80/B10)
- Dimmable
- Optional via accessories
- Special Features
- Resistant To High Temperatures
- Class of Protection
- III
- Glare Control
- Diffused Safety Glass
- Cascadable
- No
- Energy Efficiency
- 155-lm/W
- Model
- TUBELED_40 II ECO
- Operating Temperature
- -30 °C to +70 °C (-22 °F to 158 °F)
- Color Rendering (Ra)
- >85
- Cover Material
- Safety glass, 4 mm (0,16")
- Beam Angle
- 100°
- Connection
- M12 A-coded
Description

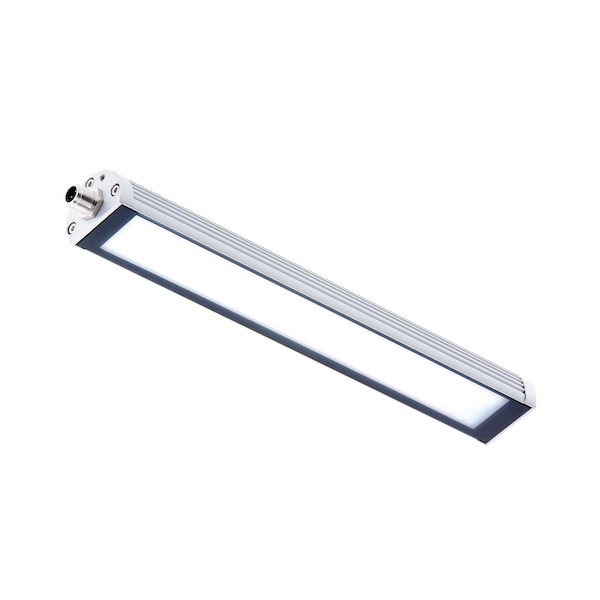

LED machine luminaire TUBELED_40 II, high-intensity, ECO version, daylight white, only approx. 30 mm flat, IP 67/IP69K, oil-resistant, chip-proof, CNC suitableThe new generation of LED machine lights: Flat design, oil as well as coolant and lubricant resistance, high temperature resistance, crack-proof tempered glass and the associated high degree of protection make the performance-optimized luminaire the 1st choice for illuminating work areas in machines. Recommended for original equipment or retrofitting!
