TUBELED 40 II Power, 280 mm 11, 02''
Mfr # 118110-01
Zoro # G514643141
product price:Â $241.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~12 W
Lumens
1899 lm
Standards
CE, UKCA, ETL Listed (5003529)
Overall Length
280 mm (~11.02")
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118110-01
- Zoro #
- G514643141
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 280 mm (~11.02")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~12 W
- Lumens
- 1899 lm
- Standards
- CE, UKCA, ETL Listed (5003529)
- Mounting Type
- LED surface-mounted light for machines
- Special Features
- High-Intensity, Power Version, Daylight White
- Tube Material
- Aluminum
- Dimmable
- Optional via accessories
- Average Life
- > 60.000 h (L80/B10)
- IP Rating
- IP67/IP69K
- Color Temperature
- Daylight white (5200 - 5700K)
- Class of Protection
- III
- Cascadable
- No
- Beam Angle
- 100°
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Energy Efficiency
- ~155 lm/W
- Color Rendering (Ra)
- >85
- Glare Control
- Diffused Safety Glass
- Cover Material
- Safety glass, 4 mm (0,16")
- Model
- TUBELED_40 II Power
- Connection
- M12 A-coded
Description

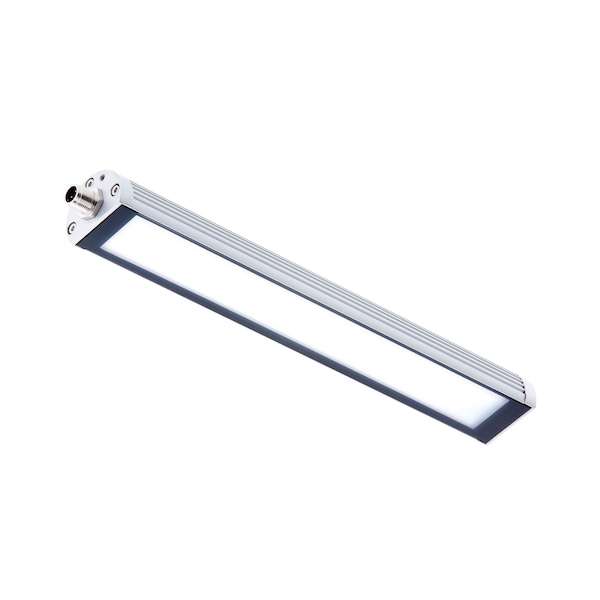

LED machine light TUBELED_40 II , high-intensity, power version, daylight white, only approx. 30 mm flat, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC.The new generation of LED machine lights: Flat design, oil-resistant and resistant to coolants and lubricants, high temperature resistance, shatterproof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the 1st choice for illuminating work areas in machines. Recommended for original equipment or retrofitting!
