TUBELED 40 II Power, 309 mm 12, 17'', male threaded M40x1.5
Mfr # 118110-03
Zoro # G214643229
product price: $327.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~12 W
Lumens
1899 lm
Mounting Type
LED surface-mounted light for machines
IP Rating
IP67/IP69K
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 118110-03
- Zoro #
- G214643229
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 309 mm (~12.17")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57") | + Ø 70 mm (~2.76")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~12 W
- Lumens
- 1899 lm
- Mounting Type
- LED surface-mounted light for machines
- IP Rating
- IP67/IP69K
- Tube Material
- Aluminum
- Special Features
- Mounting In >40 Mm Hole At Machine Housing Via Male Thread
- Dimmable
- Optional via accessories
- Color Temperature
- Daylight white (5200 - 5700K)
- Standards
- CE, UKCA, ETL Listed (5003526)
- Average Life
- > 60.000 h (L80/B10)
- Mounting Accessories
- Fastening via M40x1.5
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Connection
- M12 A-coded
- Cascadable
- No
- Cover Material
- Safety glass, 4 mm (0,16")
- Glare Control
- Diffused Safety Glass
- Model
- TUBELED_40 II M40x1.5
- Color Rendering (Ra)
- >85
- Energy Efficiency
- ~155 lm/W
- Class of Protection
- III
- Beam Angle
- 100°
Description

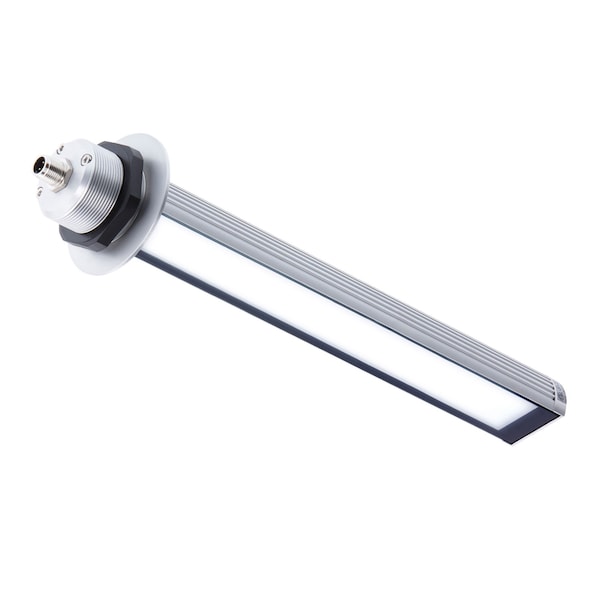

TUBELED_40 II M40 x 1.5 thread LED machine luminaire, bright, daylight white, length 309 mm, fastening via M40 thread, as ECO or Power version, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC.The new generation of LED machine lights as a version with M40 x 1.5: oil-resistant and resistant to coolants and lubricants, high temperature resistance, chip-proof tempered glass and the associated high degree of protection make this machine light the first choice for lighting in machines. The luminaire can be easily mounted in the machine enclosure via a round recess and the M40 thread. Recommended for original equipment or retrofitting!
