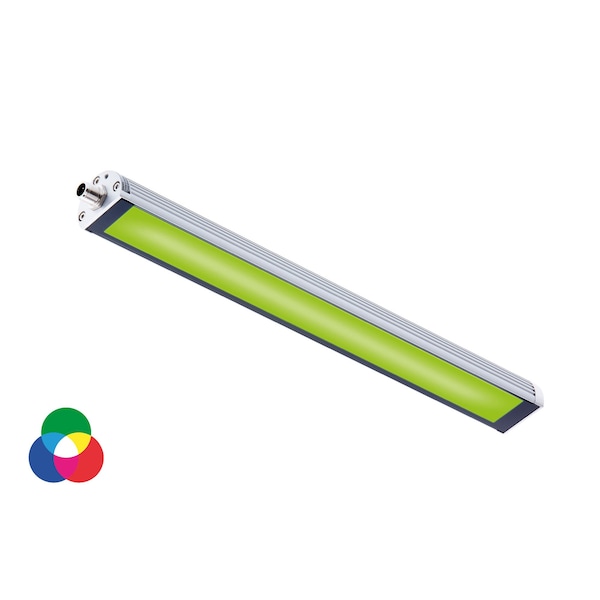

TUBELED 40 II RGB-W ECO, 1040 mm 40, 94'', 24V DC

  • Mfr # 118590-02

  • Zoro # G914643192


product price:  $651.99
/ea
Free Shipping & Returns

Key Features

Voltage
24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
Standards
CE, UKCA, ETL Listed (5003529)
Tube Material
Aluminum
Overall Length
1040 mm (~40.94")
Special Features
RGB-W: Illumination and beacon in one light, resistant to high temperatures
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
118590-02
Zoro #
G914643192
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
1040 mm (~40.94")
Size
29 mm x 40 mm (~1.14" x ~1.57")

Details

Voltage
24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
Standards
CE, UKCA, ETL Listed (5003529)
Tube Material
Aluminum
Special Features
RGB-W: Illumination and beacon in one light, resistant to high temperatures
Average Life
> 60.000 h (L80/B10)
IP Rating
IP67/IP69K
Mounting Type
LED surface-mounted light
Operating Temperature
-30 °C to +70 °C (-22 °F to 158 °F)
Beam Angle
100°
Power Consumption Green
~5.8 W
Cover Material
Safety glass, shatterproof
Lamp Luminous Flux White
4600 lm
Power Consumption White
~28 W
Lamp Luminous Flux Green
1008 lm
Class of Protection
III
Cascadable
No
Light Color White
Daylight White (5200 - 5700K)
Model
TUBELED_40 II RGB-W ECO
Glare Control
Diffused Safety Glass
Lamp Luminous Efficiency White
~165 lm/W
Lamp Luminous Flux Blue
336 lm
Lamp Luminous Flux Red
552 lm
Connection
M12 A-coded
Power Consumption Blue
~8.6 W
Power Consumption Red
~8.6 W

Description

Robust and slim LED machine luminaire with signaling function, luminous flux-optimized ECO version, LED chips Daylight white + RGB LED chips, flat design, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable.The LED hybrid luminaire for lighting and signaling is available as a power-optimized ECO version and as a luminous flux-optimized Power version. The luminaire has a flat design only and is suitable for CNC. On the one hand, the luminaire is convincing in the high-intensity illumination of work areas and, on the other hand, has a signaling function by flashing or changing the light color. In this way, for example, changes of state in the working areas of machines and systems can be signaled in color.
