Shop LED2WORK

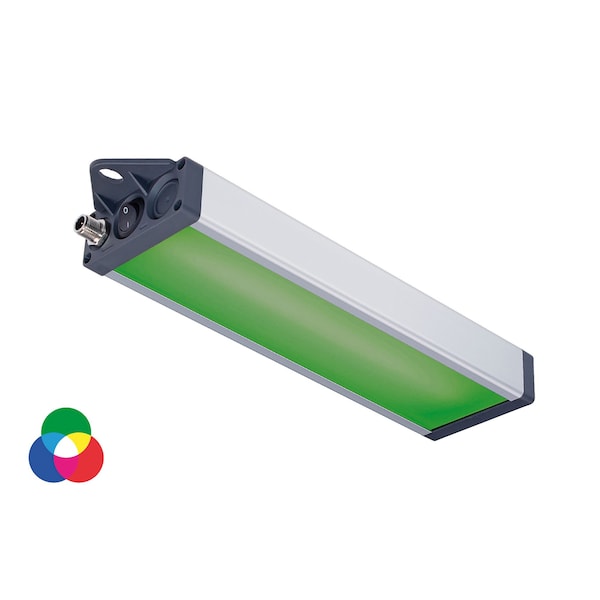

UNILED SL RGB-W, 545 mm 21, 46'', 24V DC

  • Mfr # 110994-12
  • Zoro # G814643117
product price:
$
480.99
/ea
Free Shipping & Returns

Key Features

Voltage
24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
Nominal Size - Fixtures
35 mm x 85 mm (~1.38" x ~3.35")
IP Rating
IP50
Type
LED system light and workplace lighting
Length
545 mm (~21.46")
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
110994-12
Zoro #
G814643117
UPC #
-
Country of Origin
Germany
Voltage
24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
IP Rating
IP50
Type
LED system light and workplace lighting
Rated Life
Greater than 60.000 hr (L80/B10)
Material
Aluminum
Standards
CE, UKCA, ETL Listed (5003529)
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Power Consumption White
~19 W
Lamp Luminous Flux Green
710 lm
Features
RGB-W: Illumination and beacon in one light
Lamp Luminous Flux Red
480 lm
Power Consumption Blue
~18 W
Lamp Luminous Efficiency White
126-lm/W
Connection
M12 A-coded
Class of Protection
III
Beam Angle
100°
Cascadable
No
Lamp Luminous Flux Blue
300 lm
Lamp Luminous Flux White
2430 lm
Light Color White
Daylight white (5200 - 5700K)
Model
UNILED SL RGB-W
Power Consumption Green
~5 W
Cover Material
Plastics
Glare Control
Opal white
Power Consumption Red
~18 W

Description

LED workplace luminaire with signaling or beacon function: UNILED SL RGB-W, IP50, length 545 mm, aluminum housing with plastic end caps, fixing lugs integrated, optics 100Deg, SMD LED chips arranged in a cluster for daylight white for illumination and RGB LED chips for colored light change, matt, opal white cover, 24V DC, M12 sensor plug A-type codedCaution: RGB and White must never be switched on at the same time, due to current load on conductor tracks.
