Shop LEDEX

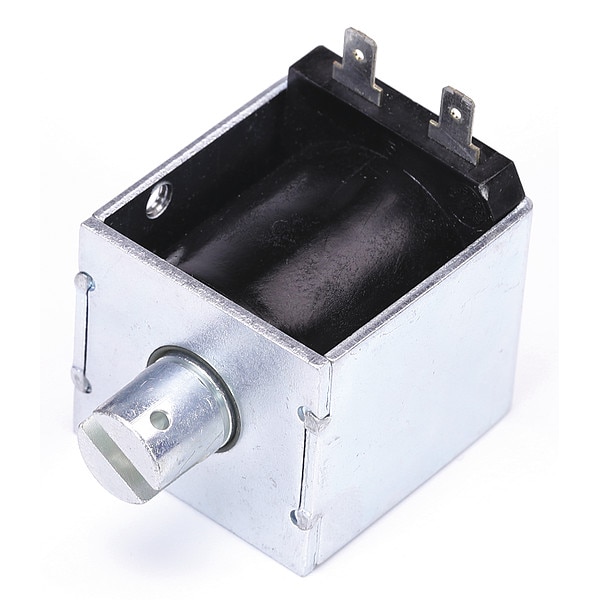

Solenoid, Continuous, 0.523 A, 0.09 A

  • Mfr # B22-2-M-36

  • Zoro # G8271474

product price:
$
39.89
/ea

Key Features

Duty Cycle
Continuous
Standards
RoHS
Width
1 31/100 in
Pull @ 1/4 In. Stroke
16 oz
Depth
1 47/100 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B22-2-M-36
Zoro #
G8271474
UPC #
-
Country of Origin
United States

Dimensions

Width
1 31/100 in
Depth
1 47/100 in
Length
1 61/100 in

Details

Item
Solenoid
Duty Cycle
Continuous
Standards
RoHS
Pull @ 1/4 In. Stroke
16 oz
Solenoid Type
AC Box Frame Pull Type
Stroke Range
0 to 1 in
Pull @ 1/8 In. Stroke
16 oz
Pull @ 1/16 In. Stroke
88 oz
Pull Force Range
16.0 to 88.0 oz
Coil Volts
240V AC
Pull @ 7/8 In. Stroke
20 oz
Pull @ 3/8 In. Stroke
17.6 oz
Pull @ 1/2 In. Stroke
20 oz
Coil Resistance
433.0 ohms
Pull @ 1 In. Stroke
16 oz
From Mounting Holes to Plunger Hole
169/200 in
Pull @ 5/8 In. Stroke
20 oz
Seated Amps
0.09 A
Material of Construction
Steel
Terminals
3/16 in QC
Mounting Holes
2x #10-32 UNF
Amps @ Max. Stroke
0.523 A
Coil Insulation
105C max; Class A
Max. On Time
180 sec
Pull @ 3/4 In. Stroke
20 oz

Description

Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 16.0 to 88.0 oz, Width 1 31/100 in, Depth 1 47/100 in, Length 1 61/100 in, Coil Volts 240V AC, Seated Amps 0.09 A, Coil Resistance 433.0 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 0.523 A, Duty Cycle Continuous, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 2x #10-32 UNF, 169/200 in From Mounting Holes to Plunger Hole, Standards RoHS
