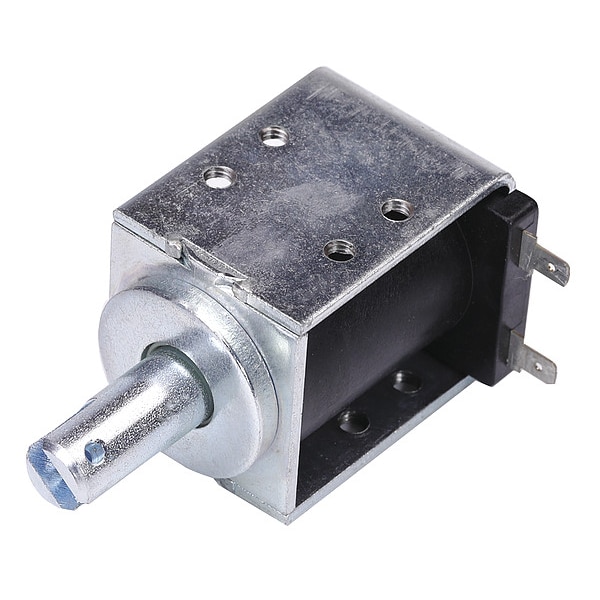

Solenoid, Intermittent, 180 sec, 1.146 A

  • Mfr # B4HD-501-M-36
  • Zoro # G8276609
product price:
$
38.59
/ea

Key Features

Duty Cycle
Intermittent
Standards
RoHS
Amps @ Max. Stroke
4.214 A
Terminals
3/16 in QC
Pull Force Range
48.0 to 288.0 oz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B4HD-501-M-36
Zoro #
G8276609
UPC #
-
Country of Origin
United States
Item
Solenoid
Duty Cycle
Intermittent
Standards
RoHS
Amps @ Max. Stroke
4.214 A
Terminals
3/16 in QC
Pull Force Range
48.0 to 288.0 oz
Seated Amps
1.146 A
Solenoid Type
AC Box Frame Pull Type
From Mounting Holes to Plunger Hole
2 3/25 in
Coil Volts
120 V AC
Pull @ 1/4 In. Stroke
80 oz
Pull @ 3/8 In. Stroke
80 oz
Pull @ 5/8 In. Stroke
80 oz
Pull @ 1 In. Stroke
56 oz
Coil Resistance
19.3 ohms
Pull @ 1/2 In. Stroke
80 oz
Stroke Range
0 to 1 in
Coil Insulation
105C max; Class A
Material of Construction
Steel
Pull @ 1/8 In. Stroke
96 oz
Pull @ 1/16 In. Stroke
128 oz
Max. On Time
180 sec
Mounting Holes
8x #8-32 UNC
Pull @ 7/8 In. Stroke
64 oz
Pull @ 3/4 In. Stroke
76 oz

Description

Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 48.0 to 288.0 oz, Width 1 9/20 in, Depth 1 63/100 in, Length 2 9/50 in, Coil Volts 120 V AC, Seated Amps 1.146 A, Coil Resistance 19.3 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 4.214 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 8x #8-32 UNC, 2 3/25 in From Mounting Holes to Plunger Hole, Standards RoHS
