  11. 3-Phase Metric Motor, 3/4 HP, D80D Frame, 230/460 Voltage, 1125 Nameplate RPM

This item is Discontinued.

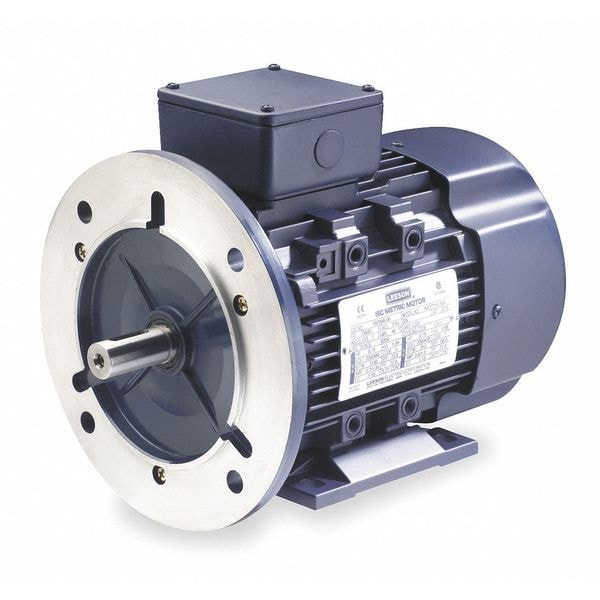

Leeson 3-Phase Metric Motor, 3/4 HP, D80D Frame, 230/460 Voltage, 1125 Nameplate RPM 192046.00

3-Phase Metric Motor, 3/4 HP, D80D Frame, 230/460 Voltage, 1125 Nameplate RPM (Discontinued)

  • Mfr # 192046.00
  • Zoro # G0331712
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
192046.00
Zoro #
G0331712
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
19mm
Shaft Length
40mm

Details

Item
Metric Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Face/Base
HP
3/4
RPM Range
1101-1200
Voltage
230/460
Frame
D80D
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
460, 230/460, 220-230/460
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1125
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Aluminum
Standards
UL Recognized, CSA Certified, CE Certified
Includes
Terminal Board, Multi Mount Repositionable Feet to Allow for 3 Conduit Box Positions
Ins. Class
F
Phase
3
kW
0.56
Frame Material
Aluminum
Motor Bearings
Ball
Duty
Continuous
Nominal Efficiency
72.0%
Max. Ambient Temp.
40 Degrees C
Hz
60/50
Full Load Amps
2.8/1.4
No. of Speeds
1

Description

A 3-phase AC motor is also preferred for its controlled acceleration and starting current as well as for its adjustable operational speed and torque limit. Take a look at the features for this Metric Motor : VOLTAGE: 230/460, HP: 3/4, PHASE: 3
