  11. 3-Phase Premium Efficiency Metric Motor, 10 HP, DF132M Frame, 230/460 Voltage, 1765 Nameplate RPM

This item is Discontinued.

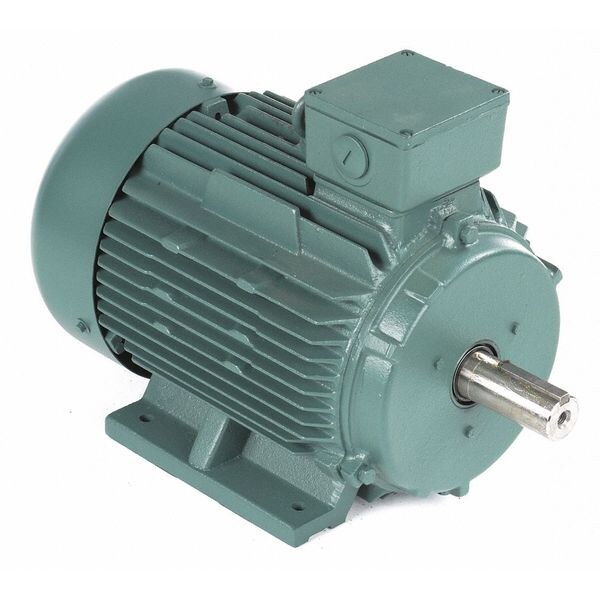

Leeson 3-Phase Premium Efficiency Metric Motor, 10 HP, DF132M Frame, 230/460 Voltage, 1765 Nameplate RPM 193313.60

3-Phase Premium Efficiency Metric Motor, 10 HP, DF132M Frame, 230/460 Voltage, 1765 Nameplate RPM (Discontinued)

  • Mfr # 193313.60
  • Zoro # G3607405
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
193313.60
Zoro #
G3607405
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
38mm
Shaft Length
60mm

Details

Item
Premium Efficiency Metric Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
10
RPM Range
1701-1800
Voltage
230/460
Frame
DF132M
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
460, 230/460, 220-230/460
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1765
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Standards
UL (E57948), CSA (LR62104), CE, IEC and NEMA
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
kW
7.50
Full Load Amps
24.0/12.0
Ins. Class
F
Hz
60/50
CC Number
CC005A
Phase
3
Nominal Efficiency
91.7%
Duty
Continuous
Frame Material
Cast Iron
No. of Speeds
1

Description

Premium Efficiency Metric Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 10 HP, 7.50 kW, Nameplate RPM 1765, Frame DF132M, Voltage 230/460, 60/50 Hz, 3 Phase, Full Load Amps 24.0/12.0, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
