  6. 3-Phase Premium Efficiency Metric Motor, 15 HP, DF160M Frame, 230/460 Voltage, 1765 Nameplate RPM

This item is Discontinued.

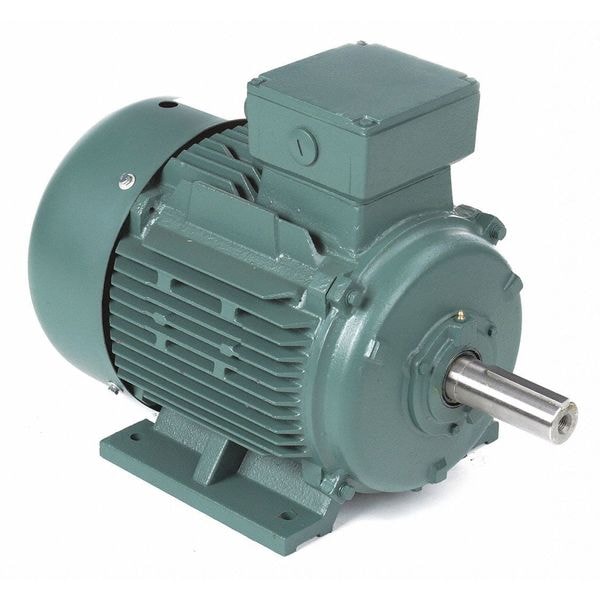

Leeson 3-Phase Premium Efficiency Metric Motor, 15 HP, DF160M Frame, 230/460 Voltage, 1765 Nameplate RPM 193316.60

3-Phase Premium Efficiency Metric Motor, 15 HP, DF160M Frame, 230/460 Voltage, 1765 Nameplate RPM (Discontinued)

  • Mfr # 193316.60
  • Zoro # G1798973
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
193316.60
Zoro #
G1798973
UPC #
-
Country of Origin
China

Dimensions

Shaft Length
60mm
Shaft Dia.
42mm

Details

Item
Premium Efficiency Metric Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
15
RPM Range
1701-1800
Voltage
230/460
Frame
DF160M
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1765
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Standards
UL (E57948), CSA (LR62104), CE, IEC and NEMA
Full Load Amps
36.0/18.0
Phase
Three
kW
11.2
Motor Bearings
Ball
Ins. Class
F
Duty
Continuous
Nominal Efficiency
92.4%
Frame Material
Cast Iron
CC Number
CC005A
Max. Ambient Temp.
40 Degrees C
Hz
60/50
No. of Speeds
1
Green Certification or Other Recognition
NEMA Premium(R) Rated
Ambient Temperature
40 Degrees C

Description

Premium Efficiency Metric Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1765, No. of Speeds 1, Voltage 230/460, Full Load Amps 36.0/18.0, DF160M Frame, Hz 60/50, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Frame Material Cast Iron
